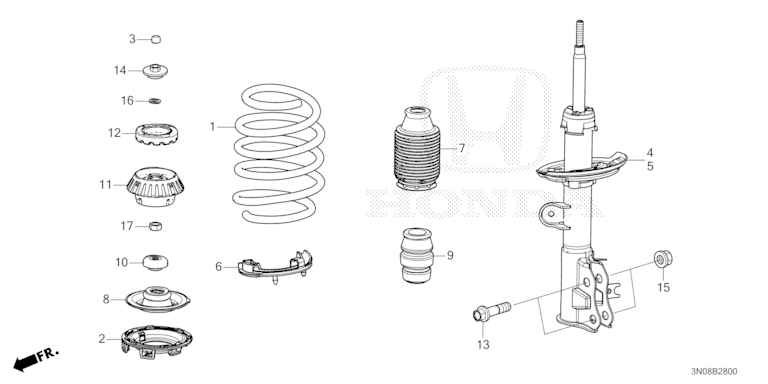

Front Shock Asborber
| Ref No. | Parts No. | Parts Name |
| 1 | 51401-3N1-T01 | FRONT SHOCK SPRING |
| 2 | 51402-3M0-J01 | SEAT, FR. SPRING UPPER CLIP |
| 3 | 51608-SLJ-000 | DAMPER CAP FRONT |
| 4 | 51611-3N1-T11 | FRONT SHOCK ABSORBER RIGHT |
| 5 | 51621-3N1-T11 | FRONT SHOCK ABSORBER LEFT |
| 6 | 51684-3M0-J01 | RUBBER, FR. SPRING SEAT |
| 7 | 51686-3M0-J01 | DUST COVER SLEEVE FRONT |
| 8 | 51688-3M0-J00 | SEAT, FR. SPRING UPPER |
| 9 | 51722-3M0-J02 | RUBBER, FR. BUMP STOPPER |
| 10 | 51726-SFA-005 | BEARING, SHOCK ABSORBER MOUNTING |
| 11 | 51920-TG4-T01 | SHOCK MOUNTING FRONT |
| 12 | 51925-TG0-T01 | DAMPER COMP., REBOUND STOP |
| 13 | 90119-TR0-A00 | BOLT, FLANGE, 16X62 |
| 13 | 90120-STK-000 | BOLT, FLANGE, 16X62 (SERVICE) |
| 14 | 90215-TM6-003 | NUT, FR. DAMPER |
| 15 | 90382-STK-A01 | NUT, FLANGE, 16MM |
| 16 | 90551-SAA-000 | WASHER, WAVE, 12MM |
| 17 | 94030-12280 | NUT, HEX., 12MM |
