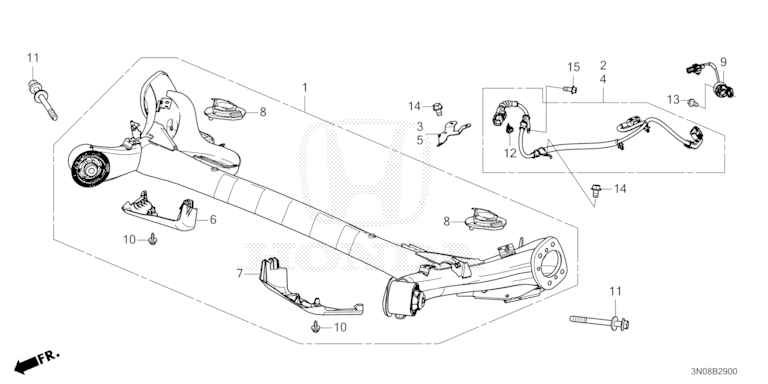

Rear Axle
| Ref No. | Parts No. | Parts Name |
| 1 | 42100-3N1-T00 | REAR AXLE BEAM |
| 2 | 47510-3N1-T02 | Electric Parking Brake Wire Harness Bracket |
| 3 | 47517-T7A-000 | BRACKET, R. EPB HARNESS |
| 4 | 47560-3N1-T02 | HARNESS ASSY., L. EPB |
| 5 | 47567-T7A-000 | Electric Parking Brake Wire Harness Bracket |
| 8 | 52748-T5A-000 | RUBBER, RR. SPRING MOUNTING LOWER |
| 9 | 57470-3M0-J02 | ABS Wheel Speed Sensor |
| 11 | 90164-T7A-000 | BOLT, FLANGE, 14X140 |
| 12 | 91565-T7A-003 | CLIP, COUPLER |
| 13 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 14 | 95701-08012-08 | BOLT, FLANGE, 8X12 |
| 15 | 95701-08016-08 | BOLT, FLANGE, 8X16 |
