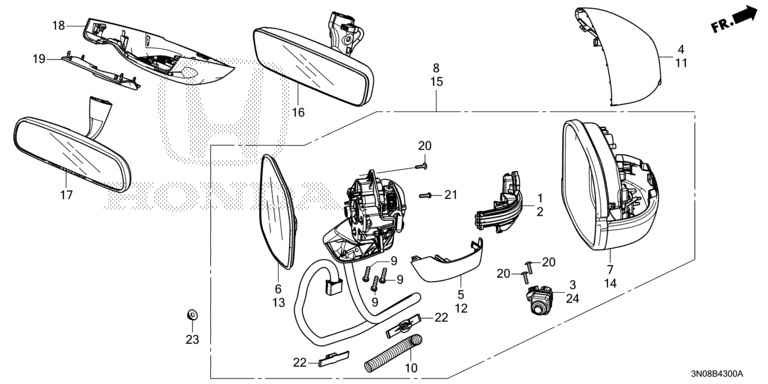

Side Mirror
| Ref No. | Parts No. | Parts Name |
| 1 | 34300-TRT-003 | SIDE TURN LIGHT Right |
| 2 | 34350-TRT-003 | SIDE TURN LIGHT Left |
| 4 | 76201-3M0-T01ZH | SKULL CAP, R *T99* (T99 UNPAINTED) |
| 5 | 76202-3M0-T01 | BASE COVER Right |
| 6 | 76203-3M0-T01 | MIRROR SUB ASSY., R. (R1260) |
| 7 | 76205-3M0-T01 | HOUSING SET, R. |
| 8 | 76208-3M0-T01 | MIRROR ASSY., R. DOOR (AUTO TURN) |
| 9 | 76211-TG1-T01 | SCREW, TAPPING, 5X20 |
| 10 | 76220-TRN-H01 | TUBE, CORRUGATE |
| 11 | 76251-3M0-T01ZH | SKULL CAP L *T99* (T99 UNPAINTED) |
| 12 | 76252-3M0-T01 | COVER, L. BASE |
| 13 | 76253-3M0-T01 | MIRROR SUB ASSY., L. (R1260) |
| 14 | 76255-3M0-T01 | HOUSING SET, L. |
| 15 | 76258-3M0-T01 | MIRROR Left DOOR |
| 16 | 76400-3M0-J02 | MIRROR ASSY., RR. VIEW (AUTO DAY/NIGHT) |
| 18 | 76412-3M0-J01ZA | COVER ASSY., SENSOR *NH900L* (NH900L NEUTRAL BLACK) |
| 19 | 76413-3M0-N01ZA | LID, SENSOR COVER *NH900L* (NH900L NEUTRAL BLACK) |
| 20 | 90109-SAG-H01 | SCREW, TAPPING, 4X14 (TRUSS) |
| 21 | 90109-TDE-003 | SCREW, TAPPING, 4X14 (PAN) |
| 22 | 91555-TA0-003 | CLIP, WIRE HARNESS (NATURAL) (70MM) (SEAL) |
| 23 | 94050-06080 | NUT, FLANGE, 6MM |
