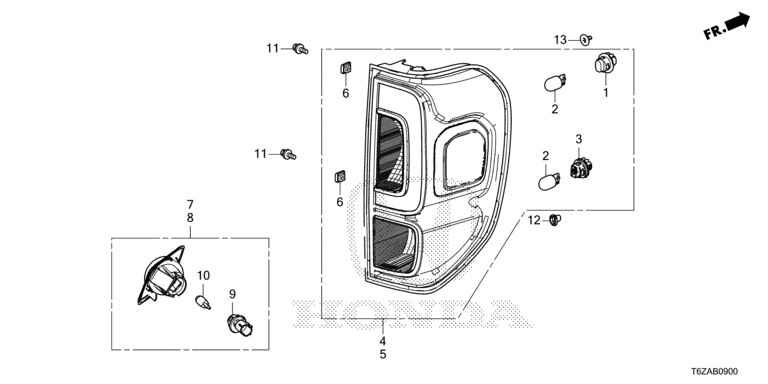

Taillight
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 33303-S5A-003 | SOCKET COMP. (T20 S) | 002 |
| 2 | 33303-SL4-003 | BULB, WEDGE (12V 21W) (STANLEY) | 004 |
| 3 | 33303-TP6-A01 | SOCKET COMP. (T20 S) | 002 |
| 4 | 33500-T6Z-A03 | TAILLIGHTÂ RIGHT | 001 |
| 5 | 33550-T6Z-A03 | TAILLIGHT LEFT | 001 |
| 6 | 33905-SHJ-A01 | NUT, SPECIAL | 004 |
| 7 | 34100-T6Z-A01 | LIGHT ASSY., R. LICENSE | 001 |
| 8 | 34120-T6Z-A01 | LIGHT ASSY., L. LICENSE | 001 |
| 9 | 34303-SJC-A01 | SOCKET COMP. (T10) | 002 |
| 10 | 34908-SB6-741 | BULB (12V 5W) (KOITO) | 002 |
| 11 | 90001-S10-A00 | BOLT-WASHER, 5X16 | 004 |
| 12 | 90650-SZT-003 | GROMMET, RR. COMBINATION LIGHT (LIGHT GRAY) | 002 |
| 13 | 91626-STK-A01 | GROMMET, TAILLIGHT | 002 |
