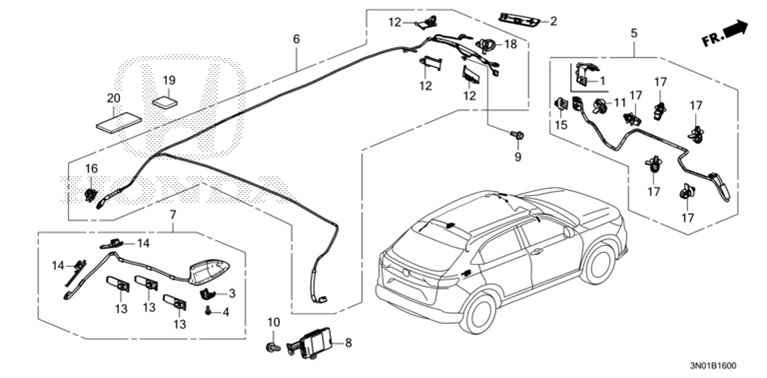

Antenna
| Ref No | Part Number | Part Description |
| 2 | 39148-3M0-J01ZB | Cover, Front DTV Amplifier |
| 3 | 39153-TVA-A01 | Washer, cap chair |
| 4 | 39154-TVA-A01 | Bolt |
| 5 | 39156-3M0-J11 | Subfeeder |
| 6 | 39160-3M0-J31 | Feeder ASSY., Roof |
| 7 | 8A150-3M0-J01ZB | Radio & DTV Antenna ASSY *R565M* |
| 8 | 8A580-3M0-J01 | Tuner ASSY |
| 9 | 90148-SE0-003 | Bolt, Earth 6X16 |
| 10 | 90148-SE0-003 | Bolt, Earth 6X16 |
| 11 | 91507-SNA-003 | Clip, Harness Band (164.5Mm) (Brown) |
| 12 | 91531-T4N-003 | Clip, Wire Harness |
| 13 | 91531-TE0-003 | Clip, wire harness |
| 14 | 91531-TF7-003 | Clip, Wire Harness |
| 15 | 91534-SWA-003 | Clip, Connector (Dark Gray) |
| 16 | 91534-SWA-003 | Clip, Connector (Dark Gray) |
| 17 | 91540-TA0-003 | Clip, Harness Band (100.1Mm) (Natural) |
| 18 | 91540-TAA-003 | Clip (159Mm) |
| 19 | 91902-T6A-J01 | Plaster, wire harness |
| 20 | 91902-T6A-J11 | Plaster, wire harness |
