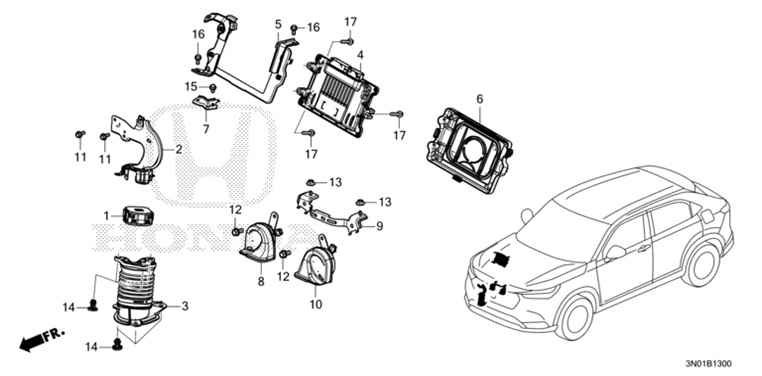

Control Unit Engine Room 1
| Ref No | Part Number | Part Description |
| 1 | 37450-TKN-H01 | AVAS Speaker ASSY |
| 2 | 37451-3N0-000 | Bracket, Speaker |
| 3 | 37455-3N0-J01 | Duct assembly, speaker |
| 4 | 37820-6HN-952 | ECU |
| 5 | 37821-6HN-J00 | Bracket COMP., ECU |
| 6 | 37823-59B-010 | Cover, ECU |
| 7 | 37824-6HN-J00 | Bracket COMP., ECU |
| 8 | 38100-3M0-J01 | Horn ASSY., Low |
| 9 | 38101-3M0-J00 | Bracket, Horn |
| 10 | 38150-3M0-J01 | Horn ASSY., High |
| 11 | 90113-SAA-003 | Bolt, Special 6X14 |
| 12 | 90150-TBA-A00 | Bolt, flange 8X16 |
| 13 | 90222-S04-003 | Nut, Special 6MM |
| 14 | 91505-TM8-003 | Clip, Bumper |
| 15 | 95701-06012-08 | Bolt, Flange (6X12) |
| 16 | 95701-06014-08 | Bolt, Flange (6X14) |
| 17 | 95701-06030-08 | Bolt, Flange (6X30) |
