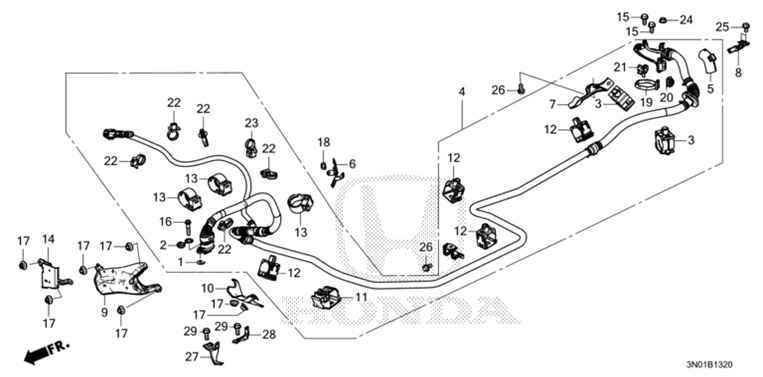

High Voltage Cable
| Ref No | Part Number | Part Description |
| 1 | 1F032-5K0-003 | C-ring 7MM |
| 2 | 1F033-5K0-003 | Cap, cushion |
| 3 | 1F085-5P6-003 | Clamp A, Cable |
| 4 | 1F110-6HN-J01 | High Voltage Cable ASSY |
| 5 | 1F141-6HN-003 | Holder, Corrugate |
| 6 | 1F163-6Y0-J00 | Stay COMP., Dashboard Lower |
| 7 | 1F165-6HN-J00 | Stay, rear floor |
| 8 | 1F167-6HN-000 | Stay, DC Cable Holder |
| 9 | 1F171-6Y0-J00 | Guard COMP., High Voltage Cable |
| 10 | 1F172-6Y0-J00 | Cover, High Voltage Cable |
| 11 | 1F185-6Y0-003 | Clamp, Pipe Stud |
| 12 | 1F186-6Y0-003 | Clamp, Pipe Vertical |
| 13 | 32119-P2E-A01 | Holder, Corrugate |
| 14 | 38896-6Y0-J00 | Protector, Compressor DC Cable |
| 15 | 90120-5Y3-000 | Bolt, flange 6X14 |
| 16 | 90130-6Y0-003 | Bolt, Special Connecting 8X38 |
| 17 | 90301-SV7-000 | Nut, Paint Coating 6MM |
| 18 | 90361-S7S-003 | Nut, Paint Coating 6MM |
| 19 | 91531-SDA-003 | Clip, Harness band |
| 20 | 91534-SWA-003 | Clip, Connector (Dark Gray) |
| 21 | 91541-S6M-003 | Clip, Harness Band |
| 22 | 91542-SWY-003 | Clip, Harness Band (158.9Mm) (Black) |
| 23 | 91547-SH3-003 | Crimp, Band |
| 24 | 94050-06080 | Nut, Flange (6Mm) |
| 25 | 95701-06010-08 | Bolt, Flange (6X10) |
| 26 | 95701-06012-05 | Bolt, Flange (6X12) |
| 27 | 1F161-6Y0-000 | Stay COMP., PCU front |
| 28 | 1F162-6HN-000 | Stay COMP., PCU rear |
| 29 | 95701-06016-08 | Bolt, Flange (6X16) |
