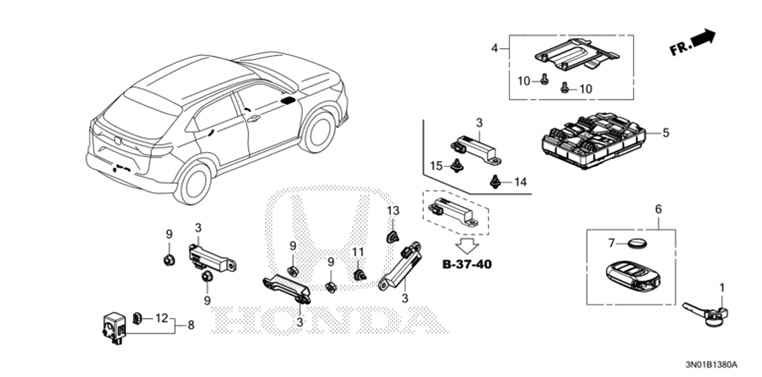

Smart Unit
| Ref No | Part Number | Part Description |
| 1 | 04351-T20-A51 | Key COMP., Emergency |
| 3 | 38387-TZ5-A01 | Antenna ASSY., LF |
| 4 | 38801-3M0-J10 | Bracket, BCM unit |
| 5 | 38809-3M9-JC1 | Module unit, Body control |
| 6 | 72147-3V0-J51 | Fob ASSY Entry key |
| 7 | 72148-SNB-000 | Battery COMP |
| 8 | 74940-T00-Z01 | Buzzer assembly, smart |
| 9 | 90361-SV4-003 | Nut, Paint Coating 6MM |
| 10 | 90701-T2A-003 | Bolt, Flange 6X12 |
| 11 | 91533-TZ3-A02 | Clip, LF Antenna |
| 12 | 91534-SHJ-003 | Clip, Coupler |
| 13 | 91534-TZ3-A01 | Clip, LF Antenna |
| 14 | 91533-THR-A01 | Clip, LF Antenna |
| 15 | 91534-THR-A01 | Clip, LF Antenna |
