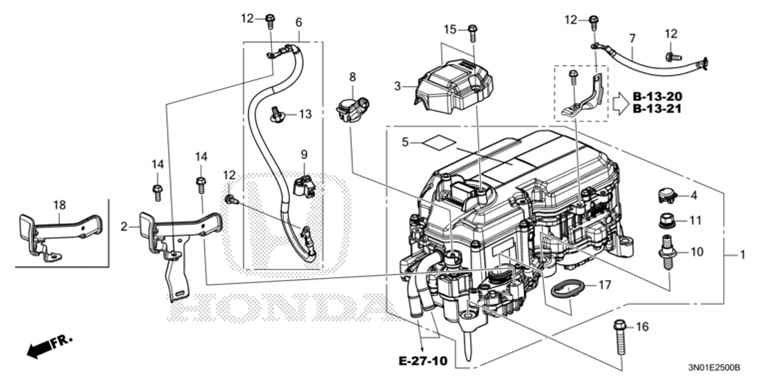

PCU Assembly
| Ref No | Part Number | Part Description |
| 1 | 1B000-6HN-J21 | PCU ASSY reliable |
| 3 | 1B093-6Y0-000 | Cover, PCU connector |
| 4 | 1F070-5Y3-300 | Clutch, cushion 3-phase |
| 5 | 1K911-6Y0-J00 | Label, PCU |
| 7 | 1N760-6HN-000 | Cable COMP., PCU rear earth |
| 8 | 1N781-6Y0-000 | Clamp, terminal +B |
| 10 | 90001-5Y3-003 | Bolt 3-phase) (M12X26 |
| 11 | 90002-5Y3-003 | Nut (left thread) (3-phase) (M12) |
| 12 | 90149-SE0-003 | Bolt, Ground (6X16) |
| 14 | 95701-06016-08 | Bolt, Flange (6X16) |
| 15 | 95701-06020-08 | Bolt, Flange (6X20) |
| 16 | 95701-10045-08 | Bolt, Flange (10X45) |
| 17 | 1F122-69D-003 | Rubber, Ring |
| 18 | 1B092-6HN-J00 | Guard, Front PCU |
