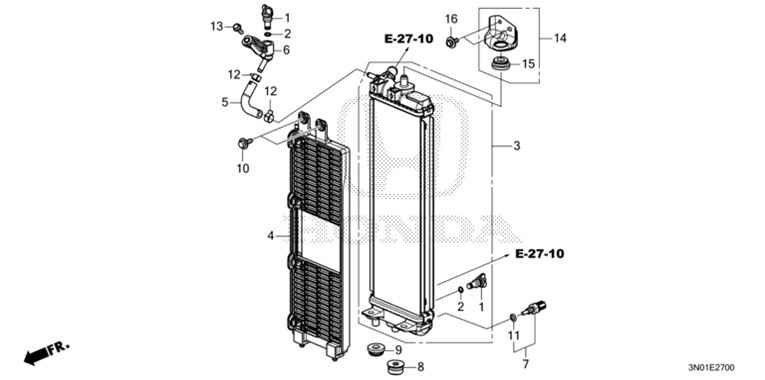

PCU Radiator
| Ref No | Part Number | Part Description |
| 1 | 19011-5BA-A01 | Cock, Drain T.RAD |
| 2 | 19012-PD2-004 | Gasket, Drain (Toyo) |
| 3 | 1J010-6Y0-004 | Radiator COMP T.R.D |
| 4 | 1J070-6Y0-000 | Guard COMP., radiator |
| 5 | 1J405-6HN-000 | Hose, Breathing |
| 6 | 1J481-6Y0-000 | Joint COMP., Breathing |
| 7 | 37870-RWC-A01 | Sensor ASSY Water Temperature Panasonic |
| 8 | 74172-SWA-000 | Cushion, Radiator Mount Lower |
| 9 | 74173-SJ4-000 | Cushion, Radiator Mount Upper |
| 10 | 90042-5Y3-004 | Bolt Washer 6X20 |
| 11 | 91307-PLC-004 | O-Ring (9.5X1.9) (Panasonic) |
| 12 | 95002-41250-04 | Clamp, Tube (D12.5) |
| 13 | 95701-06016-08 | Bolt, Flange (6X16) |
| 14 | 74171-3M0-000 | Bracket, radiator mounting upper |
| 15 | 74173-SJ4-000 | Cushion, Radiator Mount Upper |
| 16 | 93405-06016-04 | Bolt Washer 6X16 |
