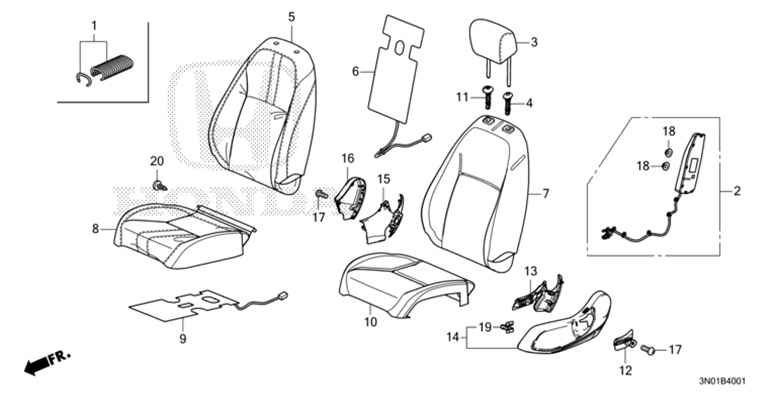

Left Front Seat Short Parts
| Ref No | Part Number | Part Description |
| 1 | 81132-TZA-J01 | Seat Cushion Spring |
| 3 | 81156-TZA-RD1 | Seat Belt Reminder Switch |
| 4 | 81190-TZA-J01 | Front Seat Back Mat |
| 5 | 81262-SNA-A01 | slide adjuster end Cap |
| 6 | 81262-TG1-T01 | Slide Adjuster Lower End Clip |
| 7 | 81273-TZA-J01 | Front Seat Slide Lever |
| 9 | 81504-3M0-J01ZA | Cover, L. Front Seat Front Inner Foot *NH900L* Neutral Black |
| 10 | 81505-3M0-J01ZA | Cover, L. Front Seat Front Outer Foot *NH900L* Neutral Black |
| 11 | 81506-3M0-J01ZA | Cover, L. Front Seat Rear Inner Foot *NH900L* Neutral Black |
| 12 | 81507-3M0-J01ZA | Cover, L. Front Seat Rear Outer Foot *NH900L* Neutral Black |
| 13 | 81565-T24-N51 | Cord, L. Front Seat Belt Reminder |
| 14 | 81680-TZA-J01 | Front Seat Anchor Wire A, L |
| 15 | 82271-TJB-A21 | Screw, Tapping 5X10 |
| 16 | 90135-TTA-J11 | Bolt Washer 10X25 |
| 17 | 90610-SDA-003 | Garnish Clip |
| 18 | 91534-SWA-003 | Clip Connector (Dark Gray) |
| 19 | 91540-TAA-003 | Clip (159Mm) |
| 20 | 81525-TZA-J01 | Front Seat Back Frame ASSY, L |
| 21 | 81536-3M0-J01 | FRONT SEAT CUSHION FRAME COMP., L |
| 22 | 82122-T0A-A01 | Bolt, Flange 10X16 |
