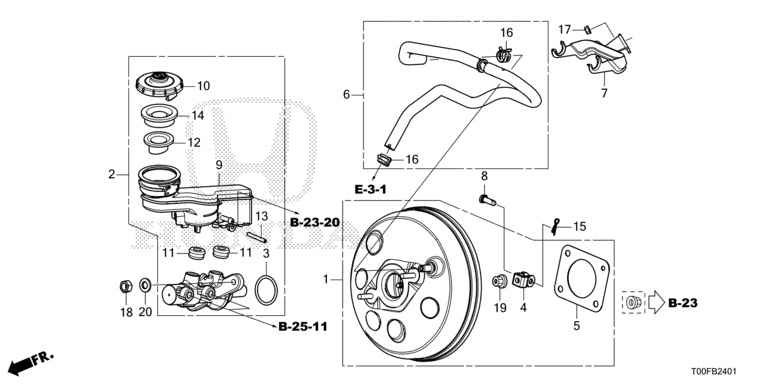

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 01469-T08-D00 | Brake Master Cylinder (9″) | 001 |
| 2 | 46101-T5S-N00 | CYLINDER SET, MASTER | 001 |
| 3 | 46134-SNC-A01 | O-RING, 35.2X2.4 | 001 |
| 4 | 46151-SB2-003 | YOKE, PUSH ROD (NISSIN) | 001 |
| 5 | 46191-S2K-000 | PACKING, MASTER POWER | 001 |
| 6 | 46402-T08-D01 | TUBE ASSY., MASTER POWER | 001 |
| 7 | 46468-T08-D00 | BRACKET, MASTER POWER TUBE | 001 |
| 8 | 46512-S70-000 | PIN, PEDAL | 001 |
| 9 | 46661-T5A-000 | RESERVOIR SET | 001 |
| 10 | 46662-S9A-003 | CAP COMP., RESERVE TANK | 001 |
| 11 | 46665-SZW-J51 | GROMMET | 002 |
| 12 | 46666-S2K-003 | FILTER, BRAKE RESERVOIR | 001 |
| 13 | 46668-SZW-J51 | PIN, SPRING, 5X40 | 001 |
| 14 | 46669-S5A-003 | DIAPHRAGM | 001 |
| 15 | 46911-S70-003 | PIN, LOCK (8MM) | 001 |
| 16 | 53729-671-003 | CLAMP D, 15.5MM | 002 |
| 17 | 90361-SV4-003 | NUT, PAINT CUTTING, 6MM | 001 |
| 18 | 94001-08080-0S | NUT, HEX., 8MM | 002 |
| 19 | 94050-08080 | NUT, FLANGE, 8MM | 001 |
| 20 | 94111-08800 | WASHER, SPRING, 8MM | 002 |
