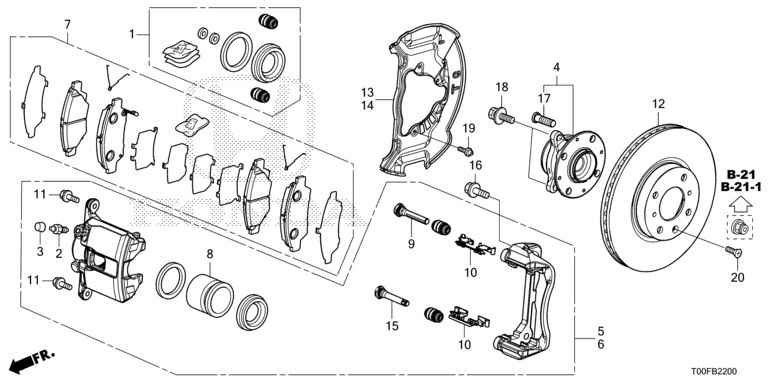

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 01463-T5N-M00 | CALIPER SET | 002 |
| 2 | 43352-SM4-951 | SCREW, BLEEDER | 002 |
| 3 | 43353-SD5-003 | CAP, BLEEDER SCREW | 002 |
| 4 | 44200-TZA-N51 | BEARING ASSY., FR. HUB UNIT | 002 |
| 5 | 45018-T08-D00 | CALIPER SUB ASSY., R. FR. | 001 |
| 6 | 45019-T08-D00 | CALIPER SUB ASSY., L. FR. | 001 |
| 7 | 45022-T08-D10 | PAD FRONT | 001 |
| 8 | 45216-T5B-003 | PISTON | 002 |
| 9 | 45235-S0A-003 | PIN A | 002 |
| 10 | 45237-T5B-003 | RETAINER | 004 |
| 11 | 45240-SC2-003 | BOLT, FLANGE, 8X22 | 004 |
| 12 | 45251-T9D-D02 | DISK, FR. BRAKE | 002 |
| 13 | 45255-T00-T00 | GUARD, R. FR. BRAKE SPLASH | 001 |
| 14 | 45256-T00-T00 | GUARD, L. FR. BRAKE SPLASH | 001 |
| 15 | 45263-TF0-G01 | PIN COMP. (B) | 002 |
| 16 | 90107-SM4-000 | BOLT, CALIPER MOUNTING (12X21) | 004 |
| 17 | 90113-SA0-025 | BOLT, WHEEL (NAGOYA RASHI) | 008 |
| 18 | 90164-T02-T01 | BOLT-WASHER, 12X38 | 006 |
| 19 | 93402-05012-08 | BOLT-WASHER, 5X12 | 006 |
| 20 | 93600-06014-0H | SCREW, FLAT, 6X14 | 002 |
