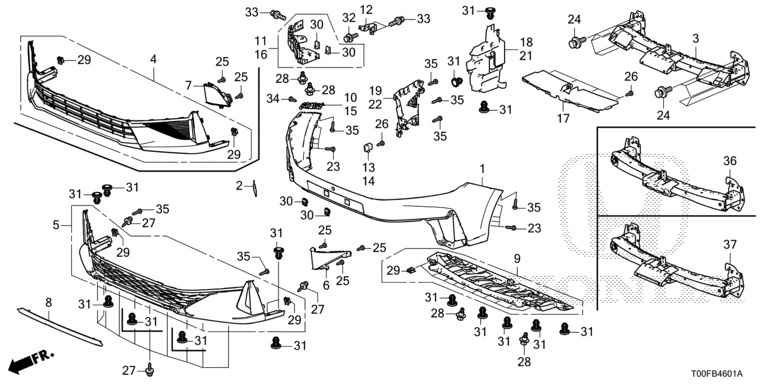

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 04711-T11-K20ZZ | FACE, FRONT BUMPER | 001 |
| 2 | 71106-T11-K20ZA | COVER, FR. TOWING HOOK (T99 UNPAINTED) | 001 |
| 3 | 71130-T11-K20ZZ | BUMPER BEAM COMP., FR | 001 |
| 5 | 71150-T11-K70ZA | GRILLE ASSY., FR. BUMPER LOWER (T99 UNPAINTED) | 001 |
| 6 | 71152-T11-K70 | COVER, LOWER GRILLE | 001 |
| 8 | 71161-T11-K70ZA | GARNISH, LOWER GRILLE (LOWER) (T99 UNPAINTED) | 001 |
| 9 | 71175-T11-K20 | PLATE, FR. BUMPER LOWER | 001 |
| 10 | 71230-T00-T00 | SPACER, R. FR. BUMPER SIDE | 001 |
| 11 | 71240-T11-K20 | BEAM, R. FR. BUMPER CORNER UPPER | 001 |
| 12 | 71242-T11-K20 | BRACKET, UPPER BEAM (FR. CORNER) | 002 |
| 13 | 71271-T11-K20 | BOX, R. FR. BUMPER (PP) | 001 |
| 14 | 71276-T11-K20 | BOX, L. FR. BUMPER (PP) | 001 |
| 15 | 71280-T00-T00 | SPACER, L. FR. BUMPER SIDE | 001 |
| 16 | 71290-T11-K20 | BEAM, L. FR. BUMPER CORNER UPPER | 001 |
| 17 | 71321-T11-K20 | PLATE, INDUCTION (MIDDLE) | 001 |
| 18 | 71325-T11-K20 | PLATE, R. FR. BUMPER INDUCTION UPPER | 001 |
| 19 | 71335-T11-K70 | DUCT, R. FR. BUMPER SIDE | 001 |
| 21 | 71375-T11-K20 | PLATE, L. FR. BUMPER INDUCTION UPPER | 001 |
| 22 | 71385-T11-K70 | DUCT, L. FR. BUMPER SIDE | 001 |
| 23 | 90103-TA0-000 | SCREW, TAPPING, 5X20 | 008 |
| 24 | 90110-SE7-000 | BOLT-WASHER, 8X21 | 010 |
| 25 | 90113-SJA-A00 | SCREW, TAPPING, 5X14 | 003 |
| 26 | 90113-SJA-A00 | SCREW, TAPPING, 5X14 | 006 |
| 27 | 90139-SE0-003 | SCREW-WASHER, 5X25 | 010 |
| 28 | 90144-TL0-G00 | BOLT, BUMPER | 006 |
| 29 | 90331-SD5-003 | NUT, SPRING, 5MM | 010 |
| 30 | 90675-SA5-003 | NUT, CLIP, 6MM | 006 |
| 31 | 91505-31X-K01 | CLIP, BUMPER (ITW) | 019 |
| 32 | 93405-06016-04 | BOLT-WASHER, 6X16 | 002 |
| 33 | 93405-06020-04 | BOLT-WASHER, 6X20 | 006 |
| 34 | 93903-25320 | SCREW, TAPPING, 5X16 | 002 |
| 35 | 93903-45480 | SCREW, TAPPING, 5X20 | 010 |
