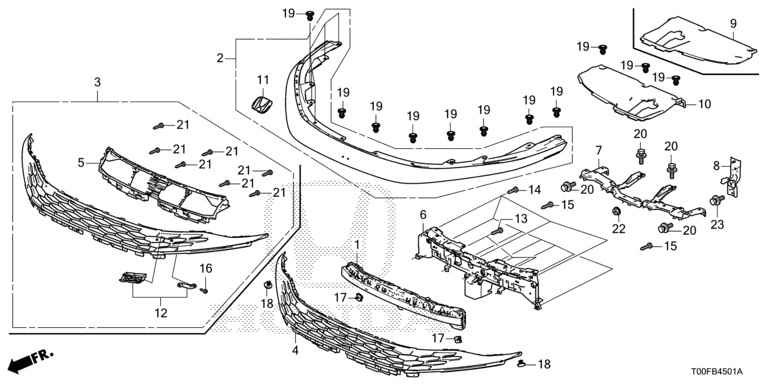

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 33600-T11-K01 | GRILLE LIGHT | 001 |
| 2 | 71110-T11-K20ZA | GARNISH BUMPER FRONT UPPER (T99 UNPAINTED) | 001 |
| 4 | 71200-T11-K90 | GRILLE FRONT | 001 |
| 6 | 71206-T11-K20 | SCREEN, FR. GRILLE UPPER AIR | 001 |
| 7 | 71250-T11-K70 | BEAM COMP., FR. BUMPER CENTER UPPER | 001 |
| 8 | 71260-T11-K40 | STAY COMP., FR. BUMPER CENTER | 001 |
| 10 | 71320-T08-K00 | COVER, FR. GRILLE | 001 |
| 11 | 75701-T11-K00 | EMBLEM (H) | 001 |
| 13 | 90111-TM9-000 | SCREW, TAPPING WASHER, 5X14 (PO) | 003 |
| 14 | 90113-SJA-A00 | SCREW, TAPPING, 5X14 | 009 |
| 15 | 90113-T0A-A00 | SCREW, TAPPING, 5X16 | 002 |
| 17 | 90331-679-003 | NUT, SPRING, 5MM | 002 |
| 18 | 91501-TR0-003 | CLIP, INNER FENDER | 002 |
| 19 | 91505-31X-K01 | CLIP, BUMPER (ITW) | 015 |
| 20 | 93405-06016-04 | BOLT-WASHER, 6X16 | 004 |
| 22 | 94071-06080 | NUT-WASHER, 6MM | 001 |
| 23 | 93405-06016-04 | BOLT-WASHER, 6X16 | 001 |
