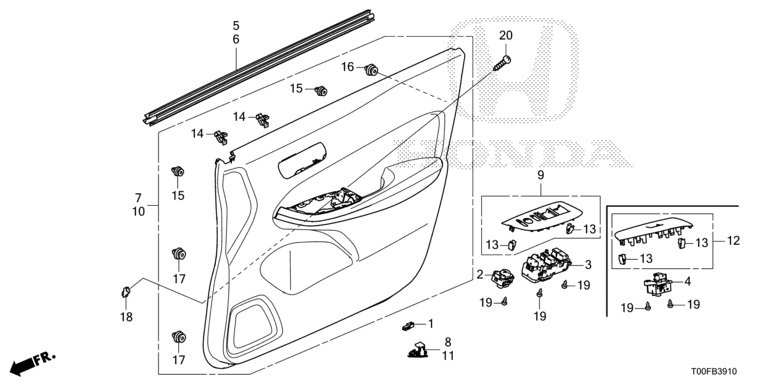

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 2 | 35190-T00-J02 | SWITCH ASSY., REMOTE CONTROL MIRROR | 001 |
| 3 | 35750-T00-Z02 | SWITCH ASSY., POWER WINDOW MASTER | 001 |
| 4 | 35760-TZA-G02 | SUB SWITCH ASSY., POWER WINDOW | 001 |
| 5 | 72335-T00-T01 | WEATHERSTRIP, R. FR. DOOR INNER | 001 |
| 6 | 72375-T00-T01 | WEATHERSTRIP, L. FR. DOOR INNER | 001 |
| 7 | 83500-T11-D41ZA | LINING R. FR. DOOR (NH882L PLATINUM GRAY) | 001 |
| 9 | 83541-T02-T01ZA | PANEL COMP., R. FR. POWER WINDOW SWITCH (NH900L NEUTRAL BLACK) | 001 |
| 10 | 83550-T11-D41ZA | LINING ASSY., L. FR. DOOR (NH882L PLATINUM GRAY) | 001 |
| 12 | 83591-T08-D01ZA | PANEL COMP., L. FR. POWER WINDOW SWITCH (SUB) (NH900L NEUTRAL BLACK) | 001 |
| 13 | 90666-SDA-A01 | CLIP, SNAP FITTING (PO) (NATURAL) | 004 |
| 14 | 90669-T6A-J01 | CLIP, SNAP FITTING | 008 |
| 15 | 91560-SZW-003 | CLIP, DOOR LINING (APPLE GREEN) | 006 |
| 16 | 91560-TG1-T01 | CLIP, GARNISH (APPLE GREEN) (SEAL) | 010 |
| 17 | 91560-TX4-A01 | CLIP, GARNISH (LIGHT YELLOW) (SEAL) | 004 |
| 18 | 91627-SJC-A01 | GROMMET, SCREW (5MM 45 DEGREE) | 002 |
| 19 | 93901-22220 | SCREW, TAPPING, 3X10 | 010 |
| 20 | 93903-25620 | SCREW, TAPPING, 5X30 | 002 |
