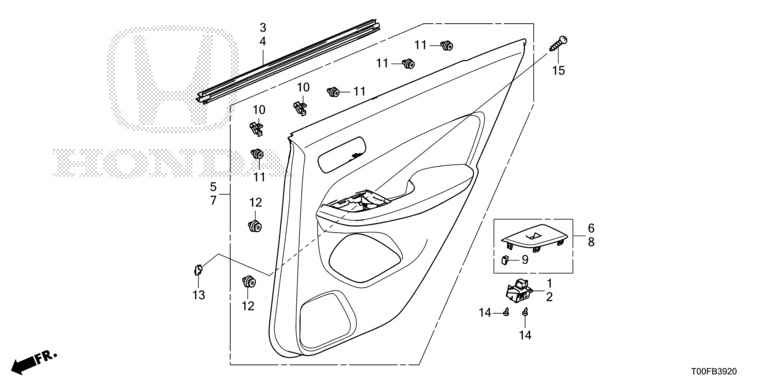

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 35760-T00-Z02 | SUB SWITCH ASSY., POWER WINDOW (RIGHT HAND SIDE) | 001 |
| 2 | 35760-T00-Z02 | SUB SWITCH ASSY., POWER WINDOW (LEFT HAND SIDE) | 001 |
| 3 | 72835-T00-T01 | WEATHERSTRIP, R. RR. DOOR INNER | 001 |
| 4 | 72875-T00-T01 | WEATHERSTRIP, L. RR. DOOR INNER | 001 |
| 5 | 83700-T11-D11ZA | LINING ASSY., R. RR. DOOR (NH882L PLATINUM GRAY) | 001 |
| 6 | 83741-T08-D01ZA | PANEL COMP., R. RR. POWER WINDOW SWITCH (NH900L NEUTRAL BLACK) | 001 |
| 7 | 83750-T11-D11ZA | LINING ASSY., L. RR. DOOR (NH882L PLATINUM GRAY) | 001 |
| 8 | 83791-T08-D01ZA | PANEL COMP., L. RR. POWER WINDOW SWITCH (NH900L NEUTRAL BLACK) | 001 |
| 9 | 90666-SDA-A01 | CLIP, SNAP FITTING (PO) (NATURAL) | 004 |
| 10 | 90669-T6A-J01 | CLIP, SNAP FITTING | 008 |
| 11 | 91560-SZW-003 | CLIP, DOOR LINING (APPLE GREEN) | 008 |
| 12 | 91560-TG1-T01 | CLIP, GARNISH (APPLE GREEN) (SEAL) | 012 |
| 13 | 91627-SJC-A01 | GROMMET, SCREW (5MM 45 DEGREE) | 002 |
| 14 | 93901-22220 | SCREW, TAPPING, 3X10 | 006 |
| 15 | 93903-25620 | SCREW, TAPPING, 5X30 | 002 |
