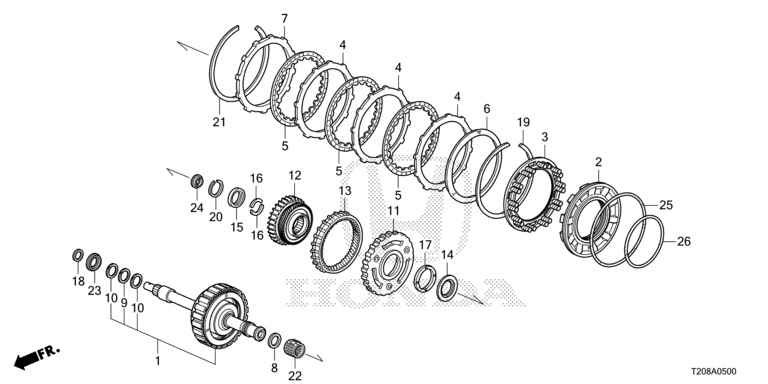

Forward Clutch
| Ref No | Parts No. | Parts Name |
| 1 | 22500-59C-003 | FORWARD CLUTCH (Input Shaft) |
| 2 | 22533-RJ2-000 | REVERSE BRAKE PISTON |
| 3 | 22540-5LJ-000 | REVERSE RETURN SPRING |
| 4 | 22544-RJ2-003 | REVERSE BRAKE PLATE |
| 5 | 22545-5LJ-003 | REVERSE BRAKE DISK |
| 6 | 22546-RJ2-003 | REVERSE BRAKE DISK SPRING |
| 7 | 22552-RJ2-003 | PLATE, REVERSE BRAKE END (2) (4.6MM) |
| 7 | 22553-RJ2-003 | PLATE, REVERSE BRAKE END (3) (4.7MM) |
| 7 | 22554-RJ2-003 | PLATE, REVERSE BRAKE END (4) (4.8MM) |
| 7 | 22555-RJ2-003 | PLATE, REVERSE BRAKE END (5) (4.9MM) |
| 7 | 22556-RJ2-003 | PLATE, REVERSE BRAKE END (6) (5.0MM) |
| 7 | 22557-RJ2-003 | PLATE, REVERSE BRAKE END (7) (5.1MM) |
| 7 | 22558-RJ2-003 | PLATE, REVERSE BRAKE END (8) (5.2MM) |
| 7 | 22559-RJ2-003 | PLATE, REVERSE BRAKE END (9) (5.3MM) |
| 7 | 22560-RJ2-003 | PLATE, REVERSE BRAKE END (10) (5.4MM) |
| 7 | 22561-RJ2-003 | PLATE, REVERSE BRAKE END (11) (5.5MM) |
| 7 | 22562-RJ2-003 | PLATE, REVERSE BRAKE END (12) (5.6MM) |
| 7 | 22563-RJ2-003 | PLATE, REVERSE BRAKE END (13) (5.7MM) |
| 7 | 22564-RJ2-003 | PLATE, REVERSE BRAKE END (14) (5.8MM) |
| 7 | 22565-RJ2-003 | PLATE, REVERSE BRAKE END (15) (5.9MM) |
| 7 | 22566-RJ2-003 | PLATE, REVERSE BRAKE END (16) (6.0MM) |
| 7 | 22567-RJ2-003 | PLATE, REVERSE BRAKE END (17) (6.1MM) |
| 7 | 22568-RJ2-003 | PLATE, REVERSE BRAKE END (18) (6.2MM) |
| 8 | 22811-RJ2-003 | RING, SEAL, 24MM |
| 9 | 22816-59C-003 | RING, SEAL, 27MM |
| 10 | 22816-RJ2-003 | RING, SEAL, 27MM |
| 11 | 23500-5LJ-000 | GEAR COMP., PLANETARY |
| 12 | 23511-5LJ-900 | SUN GEAR |
| 13 | 23531-RJ2-000 | RING GEAR |
| 14 | 90405-RLP-000 | WASHER, 40X63X5.5 |
| 15 | 90434-RFH-000 | RETAINER, COTTER (32.5MM) |
| 16 | 90436-RFH-000 | COTTER, 32.5MM |
| 17 | 90441-5LJ-000 | THRUST WASHER 50X65X3 |
| 18 | 90451-RJ2-000 | SHIM, 32X42 (A) (1.65) |
| 18 | 90452-RJ2-000 | SHIM, 32X42 (B) (1.70) |
| 18 | 90453-RJ2-000 | SHIM, 32X42 (C) (1.75) |
| 18 | 90454-RJ2-000 | SHIM, 32X42 (D) (1.80) |
| 18 | 90455-RJ2-000 | SHIM, 32X42 (E) (1.85) |
| 18 | 90456-RJ2-000 | SHIM, 32X42 (F) (1.90) |
| 18 | 90457-RJ2-000 | SHIM, 32X42 (G) (1.95) |
| 18 | 90458-RJ2-000 | SHIM, 32X42 (H) (2.00) |
| 18 | 90459-RJ2-000 | SHIM, 32X42 (I) (2.05) |
| 18 | 90460-RJ2-000 | SHIM, 32X42 (J) (2.10) |
| 18 | 90461-RJ2-000 | SHIM, 32X42 (K) (2.15) |
| 18 | 90462-RJ2-000 | SHIM, 32X42 (L) (2.20) |
| 18 | 90463-RJ2-000 | SHIM, 32X42 (M) (2.25) |
| 18 | 90464-RJ2-000 | SHIM, 32X42 (N) (2.30) |
| 18 | 90465-RJ2-000 | SHIM, 32X42 (O) (2.35) |
| 18 | 90466-RJ2-000 | SHIM, 32X42 (P) (2.40) |
| 18 | 90467-RJ2-000 | SHIM, 32X42 (Q) (2.45) |
| 18 | 90468-RJ2-000 | SHIM, 32X42 (R) (2.50) |
| 18 | 90469-RJ2-000 | SHIM, 32X42 (S) (2.55) |
| 18 | 90470-RJ2-000 | SHIM, 32X42 (T) (2.60) |
| 19 | 90602-RFH-000 | CIRCLIP A, INTERNAL, 166MM |
| 20 | 90612-RFH-000 | CIRCLIP, EXTERNAL, 36MM |
| 21 | 90613-RFH-000 | CIRCLIP B, INTERNAL, 166MM |
| 22 | 91106-5LJ-007 | NEEDLE BEARING 20X24X17 |
| 23 | 91131-5LJ-007 | THRUST NEEDLE 29.55X45X3.62 |
| 24 | 91132-5LJ-007 | THRUST NEEDLE 24.5X39.1X3.2 |
| 25 | 91301-RFH-003 | O-RING, 152X2.5 |
| 26 | 91303-PA9-004 | O-RING, 100X2.2 (NOK) |
