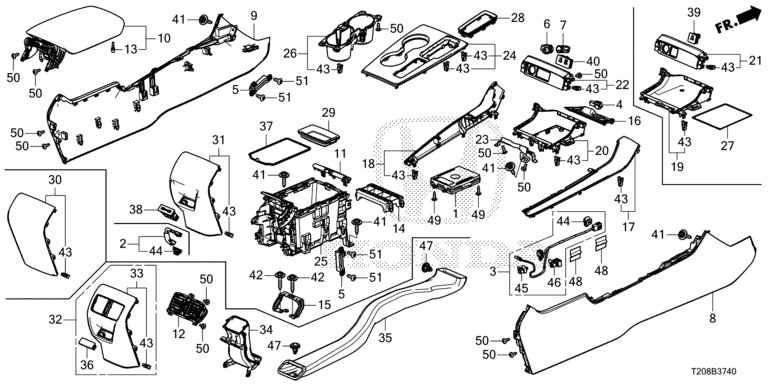

Console
| Ref No | Parts No. | Parts Name |
| 3 | 32114-T20-A00 | SUB CORD, CONSOLE |
| 4 | 34760-T4G-901 | LIGHT ASSY., AMBIENT (WHITE) |
| 5 | 38387-TZ5-A01 | ANTENNA ASSY., LF |
| 6 | 39620-T20-Z01 | CAP ASSY. |
| 7 | 39624-T5A-J01 | SOCKET ASSY. |
| 8 | 83401-T24-T01ZA | PANEL, DRIVER SIDE (RH) |
| 9 | 83402-T24-T01ZA | PANEL, PASSENGER SIDE (RH) |
| 10 | 83405-T24-T11ZA | ARMREST, CONSOLE (LEATHER) |
| 11 | 83406-T20-A01ZA | GARNISH, BOX *NH900L* |
| 12 | 83406-TVA-A01ZA | OUTLET ASSY., RR. (VENT) |
| 13 | 83406-TX6-A01 | STOPPER, CONSOLE ARMREST |
| 14 | 83408-T20-A01 | BRACKET |
| 15 | 83419-T24-T00 | BRACKET COMP., CONSOLE RR. |
| 16 | 83421-T20-A21ZA | TRAY, UPPER (LIGHT) *NH900L* |
| 17 | 83422-T24-T01ZA | GARNISH ASSY., DRIVER SIDE |
| 18 | 83423-T24-T01ZA | GARNISH, PASSENGER SIDE |
| 19 | 83426-T24-T01ZA | TRAY ASSY., FR. *NH900L* |
| 21 | 83427-T24-T01ZA | PANEL ASSY., JACK (1 USB) |
| 23 | 83429-T24-T01 | BRACKET, CONSOLE (RH) (CVT) |
| 24 | 83431-T24-T01ZA | PANEL ASSY., CENTER CONSOLE |
| 25 | 83433-T24-T01ZA | BOX, CONSOLE (AT) (VENT) |
| 26 | 83434-T24-T01ZA | HOLDER ASSY., CUP *NH900L* |
| 27 | 83440-T20-A01 | MAT, TRAY |
| 28 | 83446-T24-T01ZA | GARNISH, AT ESCUTCHEON |
| 29 | 83449-T20-A01 | TRAY |
| 32 | 83451-T24-T01ZA | GARNISH ASSY., RR. *NH900L* |
| 34 | 83453-T24-T01 | DUCT ASSY., RR. |
| 35 | 83460-T24-T00 | DUCT, RR. VENT |
| 36 | 83460-TZA-003ZA | LID, HOLE (USB) *NH900L* |
| 37 | 83470-T24-T01 | MAT, CONSOLE BOX |
| 39 | 8A360-T20-A11 | HOLDER, USB (ILLUMINATION) |
| 41 | 90140-T5H-H00 | BOLT-WASHER, 5X19 |
| 42 | 90140-TR0-A01 | BOLT-WASHER, 5X25 |
| 43 | 90666-TDK-003 | CLIP, SNAP FITTING (PO) |
| 44 | 91533-STK-003 | CLIP, COUPLER (NATURAL) |
| 47 | 91550-SFJ-W01ZE | CLIP, CENTER LOWER *NH900L* |
| 48 | 91902-T6A-J01 | PLASTER, WIRE HARNESS (50X50) |
| 50 | 93913-24220 | SCREW, TAPPING, 4X12 |
| 51 | 93913-25420 | SCREW, TAPPING, 5X16 |
