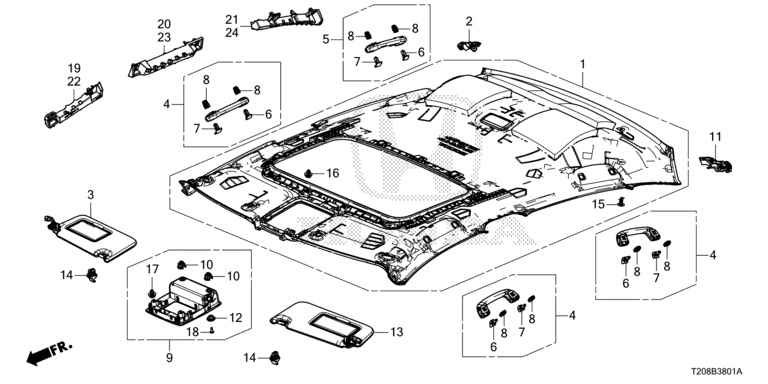

Roof Lining Sunroof
| Ref No | Parts No. | Parts Name |
| 1 | 83200-T24-P51ZA | LINING ASSY., ROOF (SUNROOF) |
| 2 | 83205-T20-A01 | PAD ASSY., R. RR. ROOF SIDE |
| 3 | 83230-T24-Z01ZA | SUNVISOR ASSY., R. (MIRROR) |
| 4 | 83240-T20-A01ZB | RAIL ASSY., GRAB *NH900L* |
| 5 | 83240-T20-A11ZB | RAIL ASSY., GRAB (COAT HOOK) |
| 6 | 83244-T20-A01ZB | CAP A *NH900L* |
| 7 | 83245-T20-A01ZB | CAP B *NH900L* |
| 8 | 83246-T20-A01 | CLIP, GRAB RAIL |
| 9 | 83250-T20-A01ZA | CONSOLE ASSY., ROOF *NH900L* |
| 10 | 83253-T2J-H12 | CLIP, ROOF CONSOLE |
| 11 | 83255-T20-A01 | PAD ASSY., L. RR. ROOF SIDE |
| 12 | 83255-T2J-H01 | BUSH, CLIP |
| 13 | 83280-T24-Z01ZA | SUNVISOR ASSY., L. (MIRROR) |
| 14 | 88217-TK8-A01ZS | HOLDER ASSY., SUNVISOR |
| 15 | 90667-TRT-A01ZD | CLIP, TRIM, 7MM *NH900L* |
| 16 | 91560-SZW-003 | CLIP, DOOR LINING (APPLE GREEN) |
| 17 | 91560-SZW-J01 | CLIP, PILLAR GARNISH (LIGHT YELLOW) |
| 18 | 93903-24380 | SCREW, TAPPING, 4X12 |
| 19 | 83203-T24-T01 | PAD, R. FR. ROOF SIDE |
| 20 | 83204-T24-T01 | PAD, R. CENTER ROOF SIDE |
| 21 | 83206-T24-T01 | PAD, R. QUARTER ROOF SIDE |
| 22 | 83253-T24-T01 | PAD, L. FR. ROOF SIDE |
| 23 | 83254-T24-T01 | PAD, L. CENTER ROOF SIDE |
| 24 | 83256-T24-T01 | PAD, L. QUARTER ROOF SIDE |
