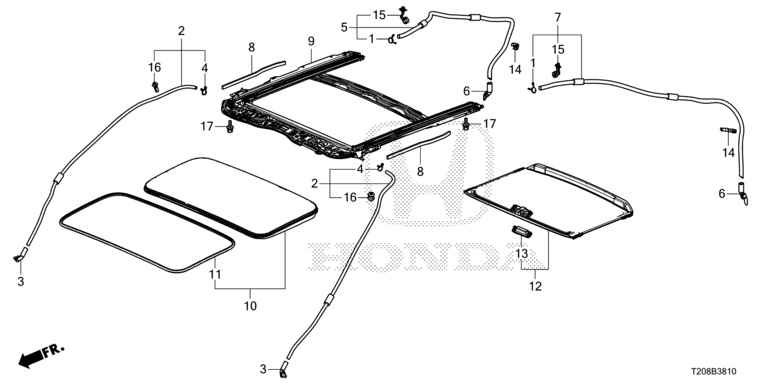

Sliding Roof
| Ref No | Parts No. | Parts Name |
| 1 | 18534-634-670 | CLIP, AIR HOSE, 16MM |
| 2 | 70050-T20-A00 | TUBE, FR. DRAIN VINYL (SUNROOF) |
| 3 | 70052-S6A-J00 | VALVE, FR. DRAIN (SUNROOF) |
| 4 | 70057-SNA-A00 | CLIP, SUNROOF DRAIN TUBE |
| 5 | 70060-T20-A00 | TUBE, R. RR. DRAIN VINYL (SUNROOF) |
| 6 | 70062-TG5-H00 | VALVE, RR. DRAIN (SUNROOF) |
| 7 | 70065-T20-A00 | TUBE, L. RR. DRAIN VINYL (SUNROOF) |
| 8 | 70082-TBA-A01 | SEAL B, FRAME |
| 9 | 70100-T29-T01 | FRAME COMP., SUNROOF |
| 10 | 70200-TBA-A02 | GLASS ASSY., ROOF |
| 11 | 70205-T2A-A01 | SEAL, SUNROOF GLASS |
| 12 | 70600-TEK-M11ZA | SUNSHADE |
| 13 | 70611-T2A-A01ZK | HANDLE, SUNSHADE |
| 14 | 91504-SWA-003 | CLIP, SUNROOF DRAIN TUBE (RR.) |
| 15 | 91504-T20-A01 | CLIP, SUNROOF DRAIN TUBE |
| 16 | 91540-S30-003 | CLIP, HARNESS BAND (NATURAL) (151.5MM) |
| 17 | 93405-06016-08 | BOLT-WASHER, 6X16 |
