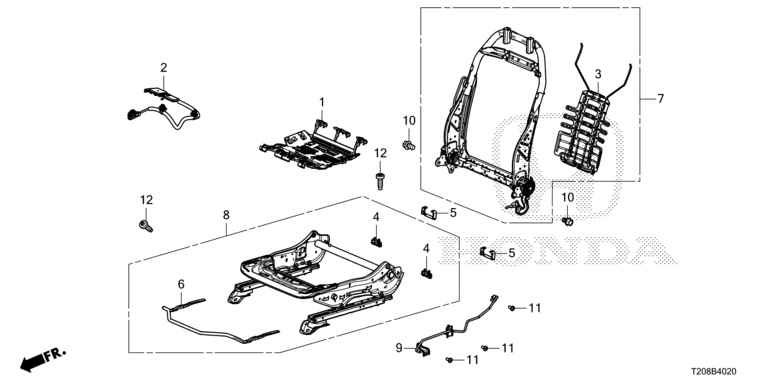

Front Left Seat Parts

Ref No	Parts No.	Parts Name
1	81132-TZA-J01	SPRING COMP., SEAT CUSHION
3	81190-TZA-J01	MAT COMP., FR. SEATBACK
4	81262-SNA-A01	CAP, SLIDE ADJUSTER UPPER END
5	81262-TG1-T01	CAP, SLIDE ADJUSTER LOWER END
6	81273-TZA-J01	LEVER, FR. SEAT SLIDE
7	81525-T24-Z01	FRAME ASSY., L. FR. SEATBACK
8	81536-T24-Z01	FRAME COMP., L. FR. SEAT CUSHION
9	81680-TZA-J01	WIRE COMP. A, L. FR. SEAT ANCHOR
10	82122-T0A-A01	BOLT, FLANGE, 10X16
11	82271-TJB-A21	SCREW, TAPPING, 5X10 (HT)
12	90135-TJB-A00	BOLT, TORX PLUS, 10X30
