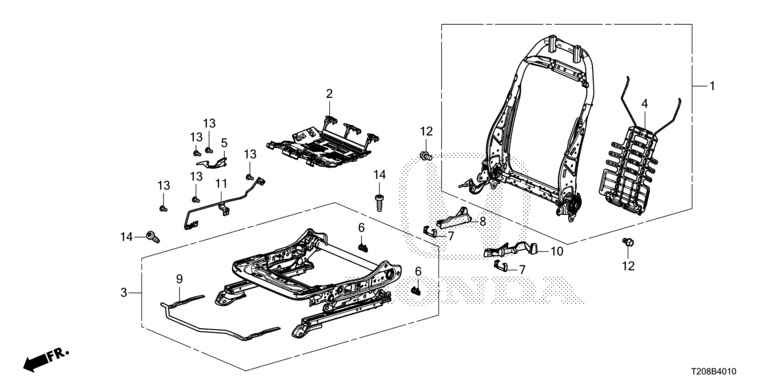

Front Right Seat Parts
| Ref No. | Parts No. | Parts Name |
| 1 | 81125-T24-Z11 | FRAME ASSY., R. FR. SEATBACK |
| 2 | 81132-TZA-J01 | SPRING COMP., SEAT CUSHION |
| 3 | 81136-T24-Z11 | FRAME COMP., R. FR. SEAT CUSHION |
| 4 | 81190-TZA-J01 | MAT COMP., FR. SEATBACK |
| 5 | 81224-TZA-J11 | LEVER, R. FR. SEAT HEIGHT |
| 6 | 81262-SNA-A01 | CAP, SLIDE ADJUSTER UPPER END |
| 7 | 81262-TG1-T01 | CAP, SLIDE ADJUSTER LOWER END |
| 8 | 81269-TZA-J11ZA | COVER, R. UPPER RAIL OUTER *NH900L* (NH900L NEUTRAL BLACK) |
| 9 | 81273-TZA-J01 | LEVER, FR. SEAT SLIDE |
| 10 | 81279-TZA-J11ZA | COVER, R. UPPER RAIL INNER *NH900L* (NH900L NEUTRAL BLACK) |
| 11 | 81280-TZA-J11 | WIRE COMP. A, R. FR. SEAT ANCHOR |
| 12 | 82122-T0A-A01 | BOLT, FLANGE, 10X16 |
| 13 | 82271-TJB-A21 | SCREW, TAPPING, 5X10 (HT) |
| 14 | 90135-TJB-A00 | BOLT, TORX PLUS, 10X30 |
