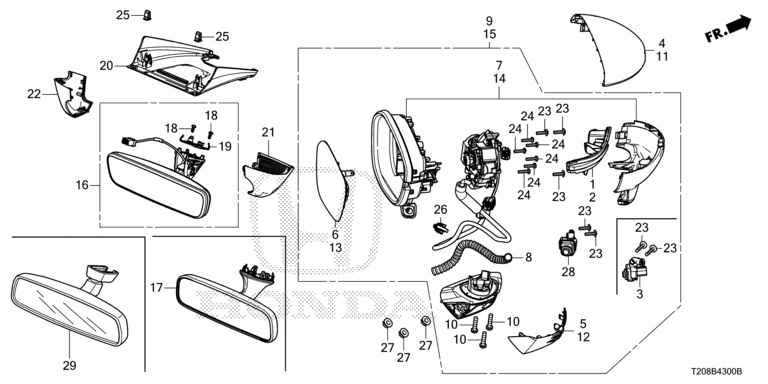

Side Mirror
| Ref No. | Parts No. | Parts Name |
| 1 | 34300-TVA-H01 | LIGHT ASSY., R. SIDE TURN |
| 2 | 34350-TVA-H01 | LIGHT ASSY., L. SIDE TURN |
| 4 | 76201-T20-A31ZJ | CAP, R. SKULL (SIDE TURN) |
| 5 | 76202-T24-T01 | COVER, R. BASE |
| 6 | 76203-T31-H11 | MIRROR SUB ASSY., R. (R1260) (HEATED) |
| 7 | 76205-T24-T01 | HOUSING SET, R. |
| 8 | 76206-T20-A01 | TUBE, CORRUGATE |
| 9 | 76208-T24-N01 | MIRROR RIGHT (AUTO TURN) |
| 10 | 76211-TG1-T01 | SCREW, TAPPING, 5X20 |
| 11 | 76251-T20-A31ZJ | CAP, L. SKULL (SIDE TURN) |
| 12 | 76252-T24-T01 | COVER, L. BASE |
| 13 | 76253-T31-H11 | MIRROR SUB ASSY., L. (R1260) (HEATED) |
| 14 | 76255-T24-T01 | HOUSING SET, L. |
| 15 | 76258-T24-N01 | MIRROR LEFT (AUTO TURN) |
| 16 | 76400-T20-A21 | MIRROR, RR. VIEW (AUTO DAY/NIGHT) |
| 18 | 76404-THR-A41 | SCREW, MOUNT |
| 19 | 76405-THR-A41 | SPRING, MOUNT |
| 20 | 76412-T20-A01ZB | COVER ASSY., SENSOR *NH900L) |
| 21 | 76413-T20-A01ZB | LID ASSY., R. SENSOR *NH900L* |
| 22 | 76414-T20-A01ZB | LID ASSY., L. SENSOR *NH900L* |
| 23 | 90109-SAG-H01 | SCREW, TAPPING, 4X14 (TRUSS) |
| 24 | 90109-TDE-003 | SCREW, TAPPING, 4X14 (PAN) |
| 25 | 90601-SJA-003 | CLIP, SNAP FITTING |
| 26 | 91542-SWY-003 | CLIP, HARNESS BAND (BLACK) (158.9MM) |
| 27 | 94050-06080 | NUT, FLANGE, 6MM |
