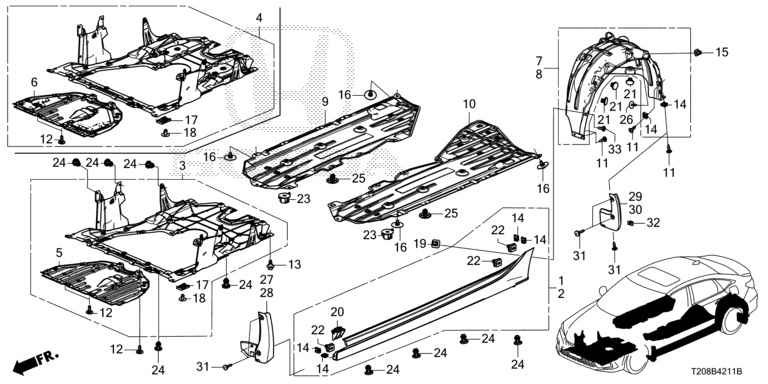

Under Cover
| Ref No. | Parts No. | Parts Name |
| 1 | 71800-T20-A00ZJ | GARNISH ASSY., R. SIDE SILL) |
| 2 | 71850-T20-A00ZJ | GARNISH ASSY., L. SIDE SILL) |
| 4 | 74110-T24-T00 | ENGINE UNDER COVER |
| 6 | 74118-T24-T00 | PLATE SET, ENGINE UNDER COVER |
| 7 | 74552-T20-A00 | FENDER, R. RR. INNER |
| 8 | 74592-T20-A00 | FENDER, L. RR. INNER |
| 9 | 74606-T24-T00 | COVER, R. FR. FLOOR UNDER |
| 10 | 74656-T24-T00 | COVER, L. FR. FLOOR UNDER |
| 11 | 90103-TA0-000 | SCREW, TAPPING, 5X20 |
| 12 | 90105-TBA-A00 | BOLT, UNDER COVER |
| 13 | 90144-SA0-020 | BOLT, BUMPER SETTING (6X15) (BLACK) |
| 14 | 90331-S3Y-003 | NUT, SPRING, 5MM |
| 15 | 90601-S30-003 | GROMMET, COWL TOP |
| 16 | 90671-TGG-004 | BOLT, UNDER COVER, 6X13.3 |
| 17 | 90673-TY2-A01 | CLIP, ENGINE UNDER COVER |
| 18 | 90674-TY2-A01 | PIN, ENGINE UNDER COVER |
| 19 | 90682-SB0-003 | GROMMET, SCREW, 5MM |
| 20 | 91501-T20-A01 | CLIP, SIDE SILL GARNISH |
| 21 | 91501-TR0-003 | CLIP, INNER FENDER |
| 22 | 91504-SP1-003 | CLIP, FR. FENDER LOWER |
| 23 | 91505-TEA-003 | CLIP, UNDER COVER |
| 24 | 91505-TM8-003 | CLIP, BUMPER (NIFCO) |
| 25 | 91505-TY2-003 | CLIP, UNDER COVER |
| 26 | 91512-SED-003 | CLIP, INNER FENDER |
| 27 | 75800-T24-P00ZB | MUDGUARD, R. FR. |
| 28 | 75810-T24-P00ZB | MUDGUARD, L. FR. |
| 29 | 75820-T24-P00ZB | MUDGUARD, R. RR. |
| 30 | 75830-T24-P00ZB | MUDGUARD, L. RR. |
| 31 | 90103-SZN-000 | SCREW, TAPPING, 5X20 |
| 32 | 90331-S3Y-003 | NUT, SPRING, 5MM |
| 33 | 90103-TA0-000 | SCREW, TAPPING, 5X20 |
