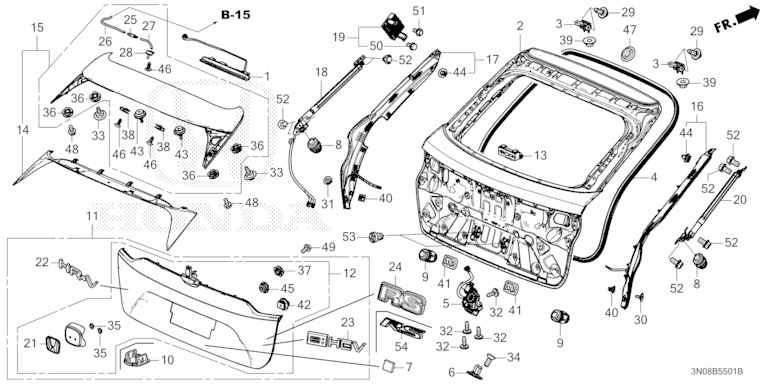

Power Tailgate
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 34270-3M0-J01 | LIGHT ASSY., HIGH MOUNT STOP | 001 |
| 2 | 68100-3N5-Y50ZZ | TAILGATE | 001 |
| 3 | 68210-3M1-T01ZZ | HINGE COMP., TAILGATE | 002 |
| 4 | 74440-3M0-003 | WEATHERSTRIP, TAILGATE | 001 |
| 5 | 74800-3M0-J51 | TAILGATE LOCK & CLOSER | 001 |
| 6 | 74813-SHJ-A01 | TAILGATE STRIKER | 001 |
| 8 | 74827-T4G-000 | TAILGATE STOPPER | 002 |
| 9 | 74829-TD4-000 | TAILGATE STOPPER | 002 |
| 12 | 74895-3N5-T21ZA | GARNISH ASSY., TAILGATE LOWER *T99* (T99 UNPAINTED) | 001 |
| 13 | 74899-3M0-J01 | DAMPER, TAILGATE DYNAMIC | 001 |
| 14 | 74905-3M0-003 | COVER SET, TAILGATE GARNISH | 001 |
| 15 | 74910-3M0-003ZJ | SPOILER ASSY., TAILGATE *T99* (T99 UNPAINTED) | 001 |
| 16 | 74934-3M0-J51 | SENSOR ASSY., R. POWER TAILGATE PINCH | 001 |
| 17 | 74954-3M0-J51 | SENSOR ASSY., L. POWER TAILGATE PINCH | 001 |
| 18 | 74961-3M0-315 | MOTOR SET, POWER TAILGATE | 001 |
| 19 | 74970-3M0-J51 | CONTROL UNIT, POWER TAILGATE | 001 |
| 20 | 74981-3M0-315 | SPRING SET, POWER TAILGATE | 001 |
| 21 | 75701-TWA-A00 | EMBLEM (H) | 001 |
| 22 | 75722-3N1-T01 | EMBLEM SET, RR. (HR-V) | 001 |
| 23 | 75723-TZA-J01 | Rear EMBLEM E:HEV | 001 |
| 25 | 76815-SYA-J01 | VALVE, ONE WAY (HIGH) | 001 |
| 26 | 76832-TFS-E01 | TUBE, 230MM | 001 |
| 27 | 76833-TME-T01 | TUBE, 90MM | 001 |
| 28 | 76850-3M0-003 | NOZZLE ASSY., RR. WINDSHIELD | 001 |
| 29 | 90101-SZ3-000 | BOLT, FLANGE, 8X22 (8.5MM) | 004 |
| 30 | 90106-TZ5-A00 | SCREW, SHOULDER TAPPING, 4X12 (PO) | 001 |
| 31 | 90106-TZ5-A00 | SCREW, SHOULDER TAPPING, 4X12 (PO) | 001 |
| 32 | 90107-TLA-A00 | BOLT, TAILGATE LOCK | 004 |
| 33 | 90113-TZ5-A00 | BOLT, SHOULDER, 6X20 (5.0) | 002 |
| 34 | 90120-T2A-000 | BOLT, LOCK STRIKER | 002 |
| 35 | 90301-ST0-003 | NUT, PUSH, 3MM | 002 |
| 36 | 90303-S5T-G00 | NUT, GARNISH, 6MM | 004 |
| 37 | 90308-SLA-003 | NUT, GARNISH, 6MM | 002 |
| 38 | 90331-SD5-003 | NUT, SPRING, 5MM | 007 |
| 39 | 90361-SR3-000 | NUT, FLANGE, 8MM | 004 |
| 40 | 90656-SJK-J01 | GROMMET, SCREW, 4MM | 002 |
| 41 | 90856-TR0-A01 | PLUG, TRUNK DRAIN | 002 |
| 42 | 91512-3M0-003 | CLIP, GARNISH | 009 |
| 43 | 91513-T6A-003 | CLIP, TAILGATE SPOILER | 009 |
| 44 | 91560-S5H-003 | CLIP, SIDE GARNISH (NATURAL) (SEAL:BLACK) | 012 |
| 45 | 91560-TG1-T01 | CLIP, GARNISH (APPLE GREEN) (SEAL) | 006 |
| 46 | 93903-252G0 | SCREW, TAPPING, 5X12 | 013 |
| 47 | 95550-20000 | PLUG, BLIND, 20MM | 001 |
| 47 | 95551-20000 | PLUG, BLIND, 20MM | 001 |
| 48 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 002 |
| 49 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 002 |
| 50 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
| 51 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
| 52 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 008 |
| 53 | 90601-SNV-P01 | GROMMET, SCREW | 002 |
