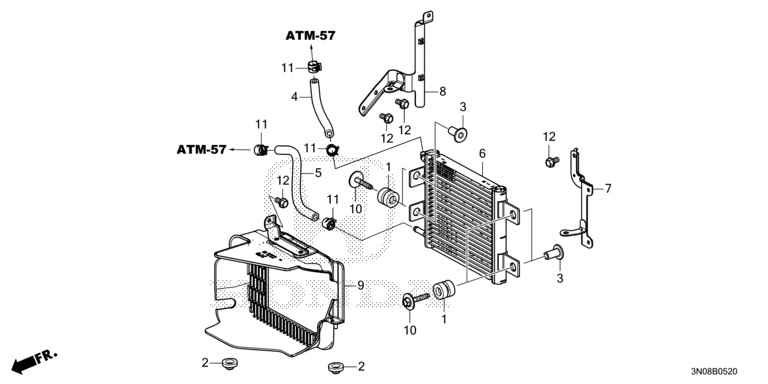

ATF Cooler
| Ref No. | Parts No. | Parts Name |
| 1 | 17212-P2J-J00 | RUBBER, AIR CLEANER MOUNTING |
| 2 | 17213-P0G-A00 | RUBBER, INTAKE COVER MOUNT |
| 3 | 17216-PN3-000 | COLLAR, AIR CLEANER MOUNTING |
| 4 | 25212-RAA-007 | ATF HOSE 210MM (TOKAI) |
| 5 | 25212-RDJ-007 | ATF HOSE 270MM (TOKAI) |
| 6 | 25510-6JK-003 | ATF COOLER |
| 7 | 25520-6JK-000 | STAY COMP. A, ATF COOLER |
| 8 | 25530-6JK-000 | STAY COMP. B, ATF COOLER |
| 9 | 25550-6JK-000 | ATF COOLER GUIDE |
| 10 | 90001-P0A-000 | BOLT-WASHER, SPECIAL, 6X35 |
| 11 | 90635-RV0-003 | CLIP COMP., OIL PIPE |
| 12 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
