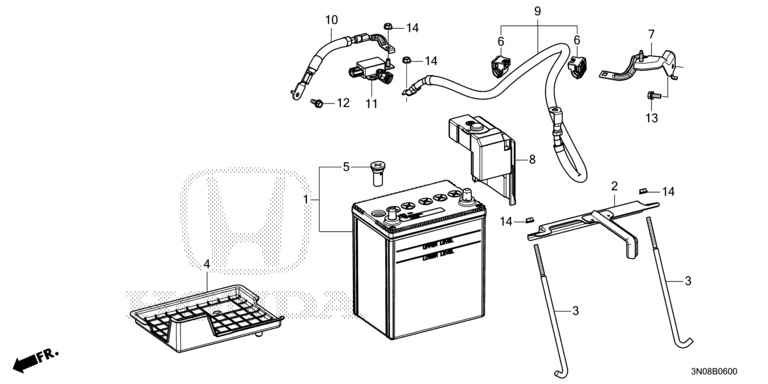

Battery
| Ref No. | Parts No. | Parts Name |
| 1 | 31500-3S6-T01 | 12 Volt BATTERY (34B19L-MF) |
| 2 | 31512-TZB-Z00 | BATTERY SETTING PLATE (B19) |
| 3 | 31513-TZB-J00 | BOLT, BATTERY SETTING |
| 4 | 31521-TZB-J00 | 12 Volt Battery Box (B19) |
| 5 | 31542-T9A-T01 | PLUG, VENT (SIAM GS) |
| 6 | 32113-R60-003 | HOLDER, CORRUGATED (10MM) |
| 7 | 32203-3M0-000 | RELAY BOX BRACKET |
| 8 | 32418-TZB-003 | COVER, BATTERY TERMINAL (6P) |
| 9 | 32421-TZB-J00 | CABLE ASSY., DOWNVERTER |
| 10 | 32600-3N0-J00 | CABLE ASSY., BATTERY EARTH |
| 11 | 38920-TZA-J02 | BATTERY SENSOR (SMALL) |
| 12 | 90149-SE0-003 | BOLT, EARTH, 6X16 |
| 13 | 93401-06016-08 | BOLT-WASHER, 6X16 |
| 14 | 94050-06080 | NUT, FLANGE, 6MM |
