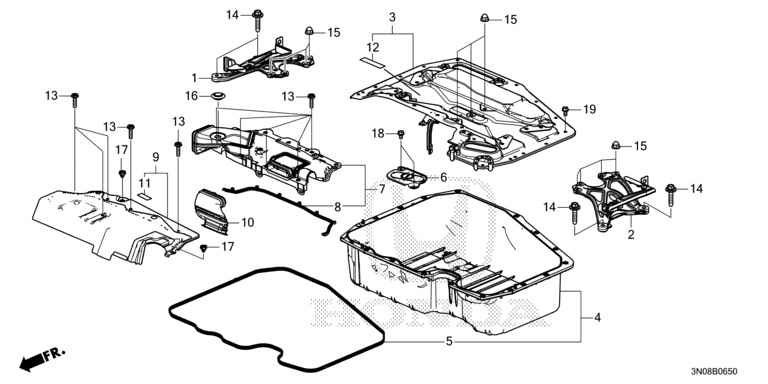

IPU Cover
| Ref No. | Parts No. | Parts Name |
| 1 | 1D910-6HP-T00 | FRAME ASSY., R. IPU SIDE |
| 2 | 1D920-6HP-T00 | FRAME ASSY., L. IPU SIDE |
| 3 | 1D930-6HN-306 | Intelligent Power Unit COVER |
| 4 | 1D940-6HN-000 | CASE COMP., IPU |
| 5 | 1D942-6HN-300 | SEAL, IPU CASE |
| 6 | 1D950-6HN-010 | LID COMP., SERVICE PLUG |
| 7 | 1D960-6HP-T00 | COVER COMP., IPU FR. |
| 8 | 1D961-6HN-300 | SEAL, COVER FR. |
| 9 | 1D970-6HP-T00 | COVER, FR. UPPER |
| 10 | 1J690-6HP-000 | DUCT, IPU CENTER |
| 11 | 1K811-58G-G01 | LABEL, CAUTION |
| 12 | 1K870-6MA-G00 | LABEL, DISPOSAL INFORMATION |
| 13 | 90003-6HN-010 | BOLT, FLANGE, 6X25 (HEXALOBULAR) |
| 14 | 90001-6BC-000 | BOLT-WASHER, SPECIAL, 8X40 |
| 15 | 90301-6HN-000 | NUT, FLANGE CAP, 8MM |
| 16 | 90820-SNA-003 | GROMMET, 20MM |
| 17 | 91514-5Y3-003 | CLIP, IPU COVER |
| 18 | 93401-06010-08 | BOLT-WASHER, 6X10 |
| 19 | 93404-06016-08 | BOLT-WASHER, 6X16 |
