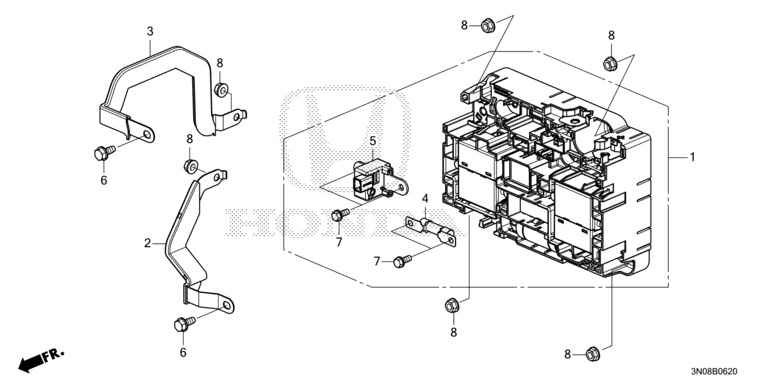

Junction Board
| Ref No. | Parts No. | Parts Name |
| 1 | 1E100-6MA-J01 | JUNCTION BOARD |
| 2 | 1E410-6HN-000 | Junction Board Positive Busbar |
| 3 | 1E420-6HN-000 | Junction Board Negative Busbar |
| 4 | 1C330-6BC-J01 | FUSE, HIGH VOLTAGE (30A) |
| 5 | 1K530-5Y3-004 | Battery Current Sensor |
| 6 | 90120-5Y3-000 | BOLT, FLANGE, 6X14 |
| 7 | 93401-05012-08 | BOLT-WASHER, 5X12 |
| 8 | 94050-06080 | NUT, FLANGE, 6MM |
