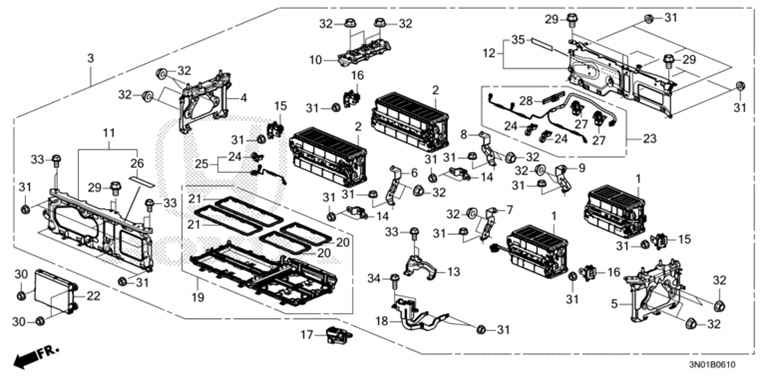

Battery Pack
| Ref No | Part Number | Part Description |
| 1 | 1D090-6HN-J00 | Battery Module |
| 2 | 1D090-6HN-J10 | Battery Module |
| 3 | 1D100-6HN-J10 | Battery Pack |
| 4 | 1D310-6HN-000 | Frame Comp., R. Side |
| 5 | 1D320-6HN-000 | Frame Comp., L. Side |
| 6 | 1D330-6HN-000 | Bracket Comp., R. Front Middle |
| 7 | 1D335-6HN-000 | Bracket Comp., L. Front Middle |
| 8 | 1D340-6HN-000 | Bracket Comp., R. Rear Middle |
| 9 | 1D345-6HN-000 | Bracket Comp., L. Rear Middle |
| 10 | 1D350-6HN-000 | Bracket Comp., Middle Upper |
| 11 | 1D370-6HN-305 | Plate COMP., Front IPU |
| 12 | 1D380-6HN-305 | Plate COMP., Rear IPU |
| 13 | 1D390-6HN-000 | Bracket COMP., Service Plug |
| 14 | 1D450-6HN-000 | Busbar ASSY., Module |
| 15 | 1D510-5K1-N00 | battery Terminal |
| 16 | 1D520-5K1-N00 | Terminal ASSY., battery |
| 17 | 1E610-5Y3-004 | Plug, Service connector |
| 18 | 1E620-6HN-003 | Base, Service connector |
| 19 | 1J640-6HN-000 | Duct Assy., Battery Inlet |
| 20 | 1J644-5P6-N01 | Seal, Battery Module |
| 21 | 1J644-5Y3-003 | Seal, Battery Module |
| 22 | 1K100-6HN-J11 | Control unit, Battery electronic |
| 23 | 1K610-6HN-003 | Battery Thermistor |
| 24 | 1K611-5K1-N01 | Band, Harness |
| 26 | 1K812-6HN-J00 | Label, High voltage caution |
| 27 | 91540-TAA-003 | Clip (159Mm) |
| 28 | 91550-TA0-003 | Clip, Harn (70Mm) |
| 29 | 93401-08012-08 | Bolt-Washer (8X12) |
| 30 | 94050-06080 | Nut, Flange (6Mm) |
| 31 | 94050-06080 | Nut, Flange (6Mm) |
| 32 | 94050-08080 | Nut, Flange (8Mm) |
| 33 | 95701-06012-08 | Bolt, Flange (6X12) |
| 34 | 95701-06016-08 | Bolt, Flange (6X16) |
| 35 | 1K815-5Y3-J00 | Label Battery caution |
