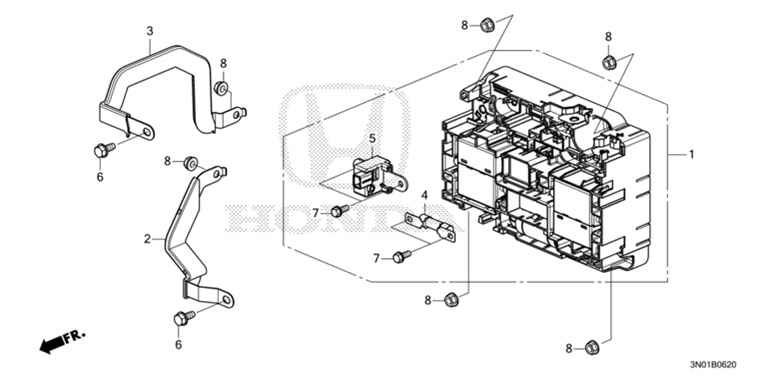

Junction Board
| Ref No | Part Number | Part Description |
| 1 | 1E100-6MA-J01 | Board ASSY., Junction |
| 2 | 1E410-6HN-000 | Bus bar ASSY., Junction board input |
| 3 | 1E420-6HN-000 | Bus bar ASSY., Junction board input |
| 4 | 1C330-6BC-J01 | Fuse, High voltage |
| 5 | 1K530-5Y3-004 | Sensor Battery current |
| 6 | 90120-5Y3-000 | Bolt, flange 6X14 |
| 7 | 93401-05012-08 | Bolt-Washer (5X12) |
| 8 | 94050-06080 | Nut, Flange (6Mm) |
