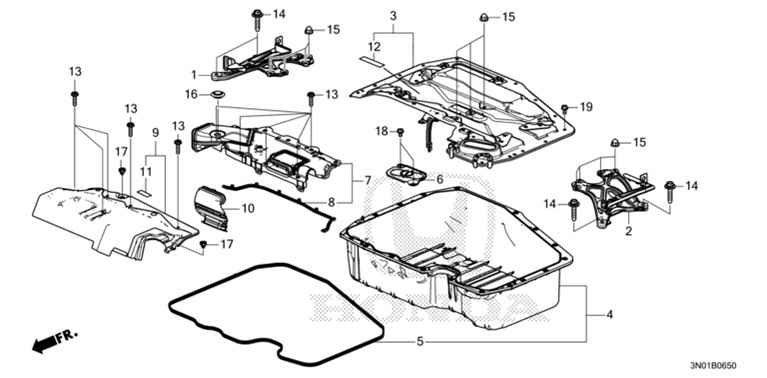

IPU Cover
| Ref No | Part Number | Part Description |
| 1 | 1D910-6HN-J00 | Frame ASSY., R. IPU Side |
| 2 | 1D920-6HN-J00 | Frame ASSY., L. IPU Side |
| 3 | 1D930-6HN-305 | Cover COMP., IPU |
| 4 | 1D940-6HN-000 | Case COMP., IPU |
| 5 | 1D942-6HN-300 | Seal, IPU Case |
| 6 | 1D950-6HN-010 | Lid COMP., Service Plug |
| 7 | 1D960-6HN-000 | Cover COMP., IPU front |
| 8 | 1D961-6HN-300 | Seal, Cover Front |
| 9 | 1D970-6HN-000 | Cover, Front Upper |
| 10 | 1J690-6HN-000 | Duct, IPU Center |
| 11 | 1K811-58G-J01 | Label, Caution |
| 12 | 1K870-6BC-J00 | Label, Disposal information |
| 13 | 90003-6HN-010 | Bolt, Flange 6X25 |
| 14 | 90001-6BC-000 | Bolt washer, Special 8X40 |
| 15 | 90301-6HN-000 | Nut, Flange Keytop 8MM |
| 16 | 90820-SNA-003 | Grommet 20MM |
| 17 | 91514-5Y3-003 | Clip, IPU Cover |
| 18 | 93401-06010-08 | Bolt-Washer (6X10) |
| 19 | 93404-06016-08 | Bolt-Washer (6X16) |
