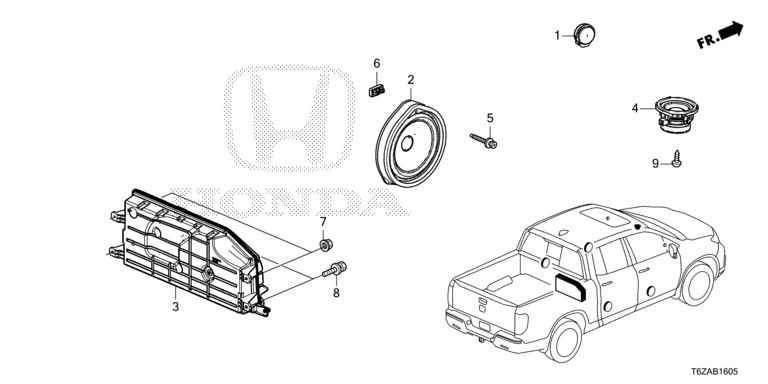

Speaker
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 39120-T2A-A01 | SPEAKER ASSY., TWEETER (PIONEER) | 002 |
| 2 | 39120-T2A-A21 | SPEAKER ASSY. (17CM) (SINGLE) (PIONEER) | 004 |
| 3 | 8A440-T6Z-A01 | SPEAKER ASSY., SUB WOOFER (PANASONIC) | 001 |
| 5 | 90109-SLJ-003 | SCREW, 5X40 | 004 |
| 6 | 90309-T2A-003 | NUT ASSY., SPEAKER | 004 |
| 7 | 90321-SV4-003 | NUT-WASHER, 6MM (PAINT CUTTING) | 002 |
| 8 | 93405-06020-08 | BOLT-WASHER, 6X20 | 002 |
