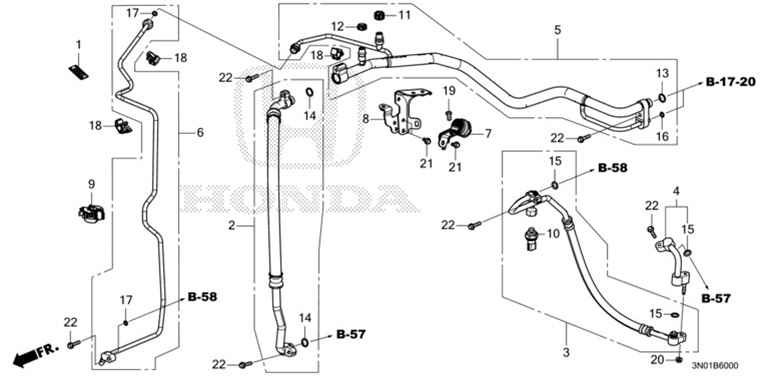

AC Hose Pipe
| Ref.No | Part Number | Description |
| 1 | 80050-TRW-J00 | Air Conditioner Label |
| 2 | 80311-3N0-J01 | Suction Hose |
| 3 | 80315-3N0-J01 | Day Starch Hose |
| 4 | 80316-TZB-J01 | Discharge Pipe |
| 5 | 80331-3N0-J01 | Heat Exchanger Pipe |
| 6 | 80341-3N0-J01 | Receiver Pipe |
| 7 | 80361-3N0-J00 | Aircon Pipe Clamp |
| 8 | 80362-3N0-J00 | Air Conditioner Pipe Stay |
| 9 | 80363-T5A-003 | Receiver Pipe Clip |
| 10 | 80450-T2F-A01 | Pressure Sensor |
| 11 | 80865-TV1-E01 | Valve Cap |
| 12 | 80866-T3V-A01 | Valve Cap |
| 13 | 80871-SN7-003 | O-Ring |
| 14 | 80871-ST7-000 | O-Ring |
| 15 | 80872-ST7-000 | O-Ring |
| 16 | 80873-SN7-003 | O-Ring 8MM |
| 17 | 80873-ST7-000 | O-Ring 8MM |
| 18 | 91548-TTA-003 | Receiver Pipe Clip |
| 19 | 93500-04008-04 | Screw, Pan 4X8 |
| 20 | 94050-06080 | Nut, Flange (6Mm) |
| 21 | 95701-06012-08 | Bolt, Flange (6X12) |
| 22 | 95701-06025-08 | Bolt, Flange (6X25) |
