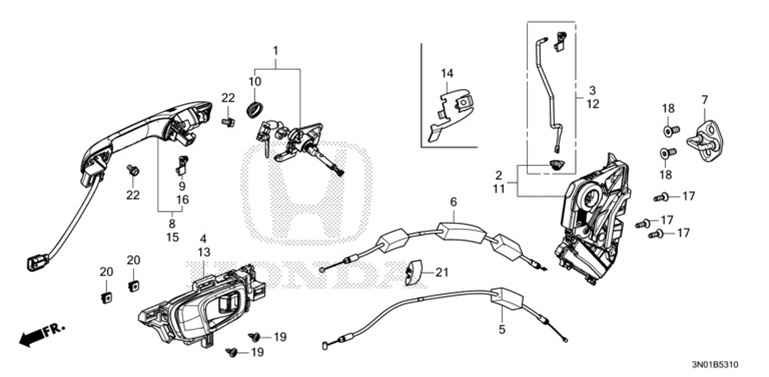

Front Door Lock
| Ref No | Part Number | Part Description |
| 1 | 35010-3M0-J01 | Key Cylinder Set |
| 2 | 72110-T00-T01 | Front Door Latch, R |
| 3 | 72113-3M0-305 | Front Door Latch Rod, R |
| 4 | 72120-3M0-J02ZA | Inside Handle, R |
| 5 | 72131-3M0-J01 | Front Inside Handle Cable |
| 6 | 72133-3M0-J01 | Front door lock Cable |
| 7 | 72135-SDA-A01 | Door Lock Striker |
| 8 | 72140-3M0-J01ZB | Handle, Right Front Door Outside *R565M* |
| 9 | 72141-TZ5-004 | Boot, R. Joint |
| 10 | 72143-SFA-003 | Grommet |
| 11 | 72150-T00-T01 | Front Door Latch Left |
| 12 | 72153-3M0-305 | Front Door Latch Rod Left |
| 13 | 72160-3M0-J02ZA | Inside Handle Left |
| 14 | 72170-TZA-000 | Front Outer Handle Bracket, L |
| 15 | 72180-3M0-J01ZB | Handle Left Front door outside *R565M* |
| 16 | 72181-TZ5-004 | Boot, L. Joint |
| 17 | 90103-TBA-000 | Bolt, Door Latch 6MM |
| 18 | 90120-T2A-000 | Bolt, Lock Striker |
| 19 | 90141-SDA-000 | Screw, Tapping 5X12 |
| 20 | 90662-TVA-A01 | Grommet, Screw 5MM |
| 21 | 90691-TBA-A01 | Crisp, Lock Cable |
| 22 | 93403-06012-08 | Bolt-Washer (6X12) |
