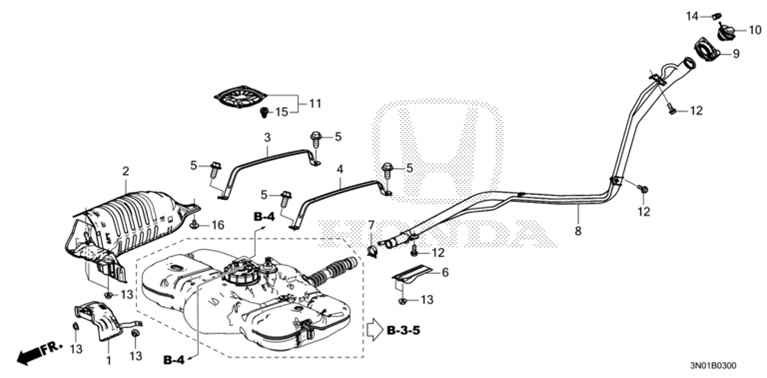

Fuel Filler Pipe
| Ref No | Part Number | Part Description |
| 1 | 17518-T5A-000 | Protector COMP.A, Fuel Tank |
| 2 | 17519-T7A-010 | Protector COMP.B, Fuel Tank |
| 3 | 17521-T5A-000 | Band, R. Fuel Tank Mounting |
| 4 | 17522-T5A-000 | Band, L. Fuel Tank Mounting |
| 5 | 17525-S0X-A00 | Bolt Washer 10X25 |
| 6 | 17645-T5A-000 | Cover, Fuel Neck Tube |
| 7 | 17652-T0A-003 | Clip, Filler Tube |
| 8 | 17660-3M0-J02 | Fuel Filler Pipe |
| 9 | 17662-TAA-013 | Packing, Fuel Filler |
| 10 | 17670-3M0-J01 | Cap COMP., Fuel filler |
| 11 | 74660-TA0-A00 | Cap Assembly, Floor Maintenance |
| 12 | 90150-S04-003 | Bolt, Earth 6X16 |
| 13 | 90301-SV7-000 | Nut, Paint Coating 6MM |
| 14 | 91594-TLA-X01 | Clip, Filler Cap |
| 15 | 91601-TA0-003 | Clip, Fuel Maintenance Hole Cap |
| 16 | 93404-06012-05 | Bolt Washer 6X12 |
