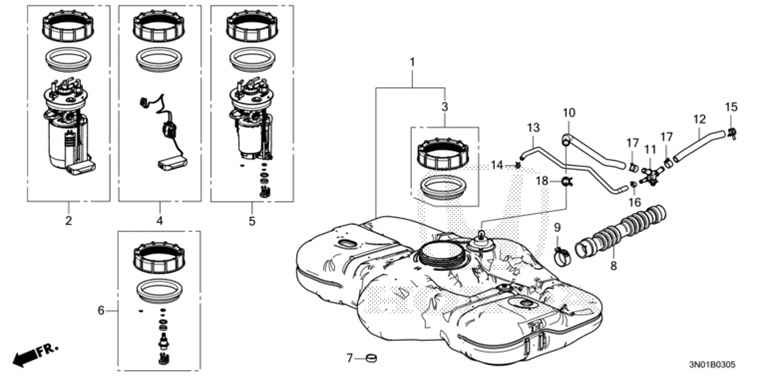

Fuel Tank
| Ref No | Part Number | Part Description |
| 1 | 17044-TAR-G00 | Fuel Tank |
| 2 | 17045-TZB-010 | Module ASSY., Fuel pump |
| 3 | 17046-TG0-000 | Nut & Packing Set, Fuel lock |
| 4 | 17047-T5A-010 | Meter COMP |
| 5 | 17048-TZB-000 | Fuel Strainer |
| 6 | 17049-TZB-000 | Regulator Set, Pressure |
| 7 | 17510-T5A-000 | Cushion, Tank Lower Clip |
| 8 | 17651-TAR-G01 | Tube COMP., Filler Neck |
| 9 | 17652-TF0-003 | Clip, Filler Tube |
| 10 | 17653-TAR-G01 | Tube A, Breather |
| 11 | 17654-T5A-003 | Joint, Suction |
| 12 | 17655-TAR-G01 | Tube B, Breather |
| 13 | 17656-TAR-G01 | Tube, Suction |
| 14 | 91404-SDC-000 | Clamp, Tube |
| 15 | 91413-S5A-003 | Clamp, Fuel Tube |
| 16 | 91414-SEL-003 | Clamp, Tube |
| 17 | 91415-SZ3-003 | Clamp, Fuel |
| 18 | 91417-SZ3-003 | Clamp, Fuel Tube (D20) |
