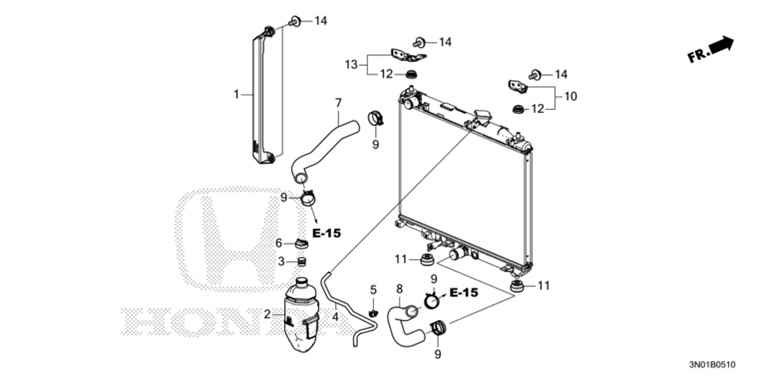

Radiator Hose
| Ref No | Part Number | Part Description |
| 1 | 19025-6Y0-000 | Seal COMP., Radiator Side |
| 2 | 19101-6Y0-000 | Tank, Reserve |
| 3 | 19102-PFB-000 | Spacer |
| 4 | 19104-6HN-000 | Hose, Reserve Tank |
| 5 | 19108-6HA-J01 | Clamp, Reserve tank hose |
| 6 | 19109-PH1-620 | Cap, Filler |
| 7 | 19501-6HN-000 | Hose, Water Upper |
| 8 | 19502-6HN-000 | Hose, Water Lower |
| 9 | 19511-PT0-004 | Clip, Water Hose 36.5MM |
| 10 | 74171-3M0-000 | Bracket, radiator mounting upper |
| 11 | 74172-TR0-A00 | Cushion, Radiator Mount Lower |
| 12 | 74173-SJ4-000 | Cushion, Radiator Mount Upper |
| 13 | 74177-3N0-000 | Bracket, Radiator Upper Mounting Center |
| 14 | 93405-06016-04 | Bolt Washer 6X16 |
