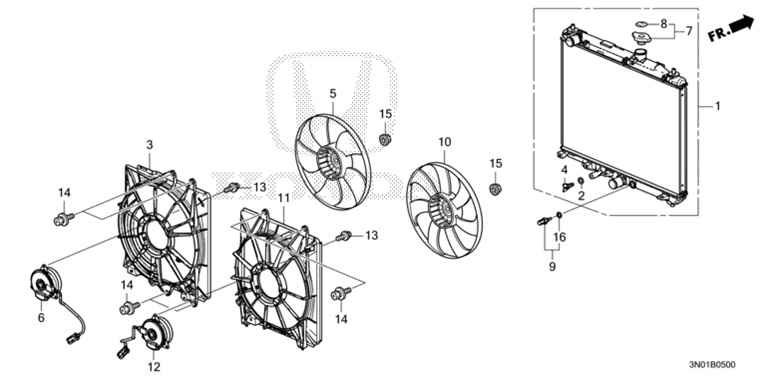

Radiator
| Ref No | Part Number | Part Description |
| 1 | 19010-6HN-003 | Radiator DENSO |
| 2 | 19012-671-300 | Packing, Drain |
| 3 | 19015-6Y0-003 | Shroud COMP |
| 4 | 19017-5AA-A01 | Bolt, Drain |
| 5 | 19020-6Y0-003 | Fan, Cooling |
| 6 | 19030-6Y0-003 | Motor, Cooling Fan |
| 7 | 19045-RAA-003 | Cap COMP., Radiator |
| 8 | 19046-RAA-A00 | Label, Radiator Cap |
| 9 | 37870-RWC-A01 | Sensor ASSY., Water Temperature |
| 10 | 38611-6Y0-003 | Fan, Cooling |
| 11 | 38615-6Y0-003 | Shroud COMP |
| 12 | 38616-6Y0-003 | Motor, Cooling Fan |
| 13 | 90041-P3G-003 | Screw washer 5X11 |
| 14 | 90042-PAA-A01 | Bolt Washer 6X16 |
| 15 | 90043-PD2-003 | Nut, Hex. (5Mm) (Denso) |
| 16 | 91307-PLC-004 | O-Ring (9.5X1.9) (Panasonic) |
