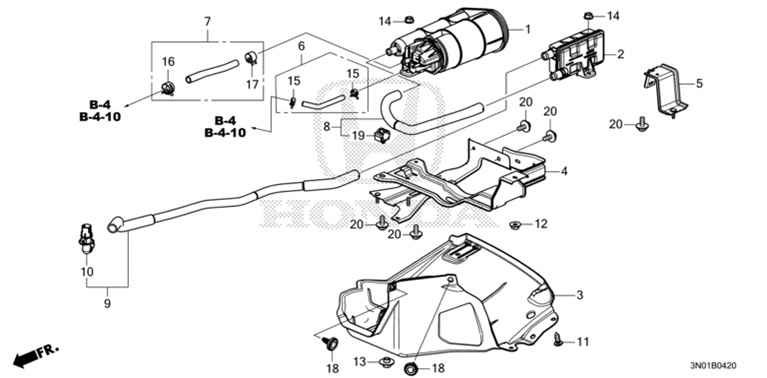

Vapor Canister
| Ref No | Part Number | Part Description |
| 1 | 17300-T7A-G71 | Vapor Canister |
| 2 | 17315-TKN-H51 | Filter, Canister |
| 3 | 17340-3M0-010 | Cover, Canister |
| 4 | 17358-3M0-000 | Bracket COMP.A, canister |
| 5 | 17359-3M0-000 | Bracket B, Canister |
| 6 | 17724-3M0-000 | Tube ASSY. F, Fuel Vent |
| 7 | 17725-3N0-010 | Tube ASSY., Fuel Purge |
| 8 | 17742-3M0-000 | Tube C, Drain |
| 9 | 17744-3M0-003 | Tube Assembly, Drain |
| 10 | 17747-TRN-H51 | Joint, Drain Tube |
| 11 | 90103-TA0-000 | Screw, Tapping 5X20 |
| 12 | 90301-SV7-000 | Nut, Paint Coating 6MM |
| 13 | 90302-T2A-000 | Nut, flange 6MM |
| 14 | 90361-TA0-A00 | Nut, Cap 6MM |
| 15 | 91404-TA0-G01 | Clamp, Fuel Tube |
| 16 | 91405-3N0-000 | Clamp, Tube |
| 17 | 91408-TBA-A01 | Clamp, Tube |
| 18 | 91505-3M0-J02 | Clip, Key Cylinder Cover |
| 19 | 91593-S5A-931 | Clip, Drain Tube |
| 20 | 93405-06016-04 | Bolt Washer 6X16 |
