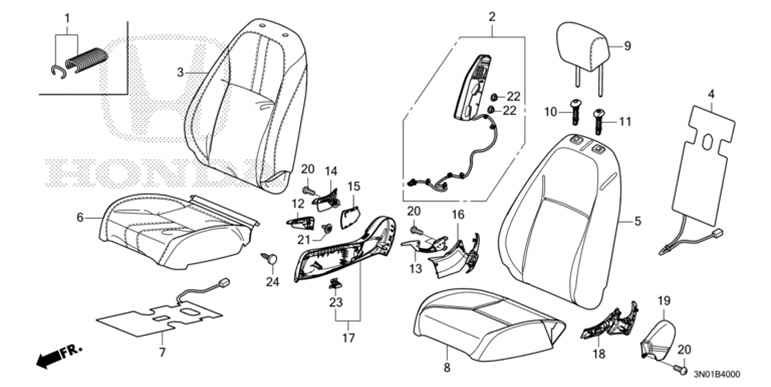

Front Seat Driver Side
| Ref No | Part Number | Part Description |
| 1 | 04810-SB3-000 | C-clip set, Trim fastener 30 set |
| 2 | 78050-TZA-J13 | Module ASSY., R. Side |
| 3 | 81121-3M0-N41ZA | Cover, R. Front Seat Back Trim Combination) *NH900L* Neutral Black |
| 3 | 81121-3M0-N42ZA | Cover, R. Front Seat Back Trim Combination) *NH900L* Neutral Black |
| 4 | 81124-TZC-G31 | Front Seat Back Heater R |
| 5 | 81127-3M0-J11 | Front Seat Back Pad R |
| 6 | 81131-3M0-N41ZA | Cover, R. Front Seat Cushion Trim Combination) *NH900L* Neutral Black |
| 6 | 81131-3M0-N42ZA | Cover, R. Front Seat Cushion Trim Combination) *NH900L* Neutral Black |
| 7 | 81134-TZC-G31 | Right Front Seat Cushion Heater |
| 8 | 81137-3M0-J31 | Front Seat Cushion Pad Right |
| 9 | 81140-3M0-N41ZA | Headrest ASSY., Front Seat *NH900L* Neutral Black |
| 10 | 81143-TZA-J01ZA | Guide, Headrest Free *NH900L* Neutral Black |
| 11 | 81144-TZA-J01ZA | Guide COMP., R. Headrest Lock *NH900L* Neutral Black |
| 12 | 81221-TZA-J11ZA | Knob, R. Front Seat Height *NH900L* Neutral Black |
| 13 | 81224-TZA-J11 | Lever, R. Front Seat Height |
| 14 | 81231-TZA-J01ZA | Knob, R. Front Seat Reclining *NH900L* Neutral Black |
| 15 | 81234-TZA-J11ZA | Cover, R. Reclining Outer Latch *NH900L* Neutral Black |
| 16 | 81237-TZA-J11ZA | Cover, R. Inner Reclining Outer *NH900L* Neutral Black |
| 17 | 81238-TZA-J11ZA | Cover COMP., R. Reclining Outer *NH900L* Neutral Black |
| 18 | 81247-TZA-J11ZA | Cover, R. Inner Reclining Inner *NH900L* Neutral Black |
| 19 | 81248-TZA-J11ZA | Cover, R. Reclining Inner *NH900L* Neutral Black |
| 20 | 82271-TJB-A21 | Screw, Tapping 5X10 |
| 21 | 90132-SE3-003 | Screw, Tapping 4X12 |
| 22 | 90321-SP0-A80 | Nut Washer 6MM |
| 23 | 90610-SR3-003 | Clip, Garnish KATO |
| 24 | 90666-SA0-003M4 | Clip, Trim (5Mm) *Nh900L* (Deep Black) |
