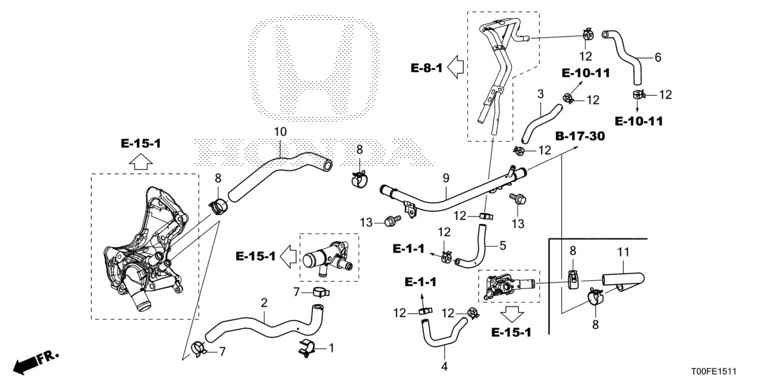

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 19423-RNA-A01 | CLAMP, ATF WARMER HOSE | 001 |
| 2 | 19504-6X0-000 | HOSE, BYPASS | 001 |
| 3 | 19506-62A-Y00 | HOSE B, BREATHER HEAT | 001 |
| 4 | 19507-6X0-000 | HOSE, THROTTLE BODY IN. | 001 |
| 5 | 19508-6X0-000 | HOSE, THROTTLE BODY OUTLET | 001 |
| 6 | 19509-62A-Y00 | HOSE A, BREATHER HEAT | 001 |
| 7 | 19512-RE2-E01 | CLIP, WATER HOSE (MUBEA) | 002 |
| 8 | 19513-6HZ-M01 | CLAMP, WATER HOSE, 21.7MM (MUBEA) | 002 |
| 9 | 19560-5R0-000 | PIPE COMP., HEATER | 001 |
| 10 | 19563-6X0-000 | HOSE, HEATER | 001 |
| 12 | 91407-6HZ-M01 | CLAMP, TUBE (D12.5) (MUBEA) | 008 |
| 13 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 002 |
