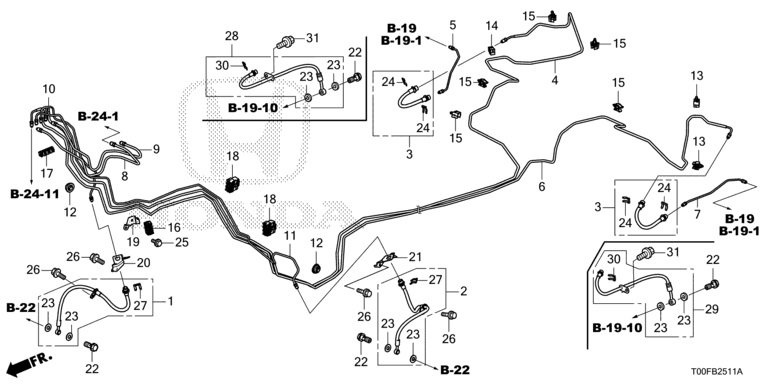

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 01464-T11-T00 | HOSE SET, R. FR. BRAKE | 001 |
| 2 | 01465-T11-T00 | HOSE SET, L. FR. BRAKE | 001 |
| 3 | 01466-T9D-D01 | HOSE SET, RR. BRAKE | 002 |
| 4 | 46330-T11-T00 | PIPE COMP. C, BRAKE | 001 |
| 5 | 46331-T02-T00 | PIPE COMP. E, R. BRAKE | 001 |
| 6 | 46340-T08-D00 | PIPE COMP. D, BRAKE | 001 |
| 7 | 46361-T02-T00 | PIPE COMP. E, L. BRAKE | 001 |
| 8 | 46374-TZA-J00 | PIPE COMP. U, BRAKE | 001 |
| 9 | 46375-TZA-J00 | PIPE COMP. V, BRAKE | 001 |
| 10 | 46376-TZA-J00 | PIPE COMP. W, BRAKE | 001 |
| 11 | 46377-TZA-J00 | PIPE COMP. X, BRAKE | 001 |
| 12 | 46380-SH3-000 | GROMMET A, BRAKE PIPE | 002 |
| 13 | 46391-STK-A01 | CLIP, BRAKE PIPE | 002 |
| 14 | 46391-TF0-003 | CLIP, BRAKE PIPE | 001 |
| 15 | 46391-TF0-951 | CLIP, BRAKE PIPE | 005 |
| 16 | 46393-T7A-003 | CLIP, BRAKE PIPE | 001 |
| 17 | 46394-T5A-J01 | CLIP, BRAKE PIPE | 001 |
| 18 | 46395-T2F-A01 | CLIP, BRAKE PIPE | 002 |
| 19 | 46398-TZA-J00 | BRACKET, BRAKE PIPE | 001 |
| 20 | 46424-T5A-000 | BRACKET, R. FR. BRAKE HOSE | 001 |
| 21 | 46425-T5A-000 | BRACKET, L. FR. BRAKE HOSE | 001 |
| 22 | 46462-SE0-000 | BOLT, OIL | 002 |
| 23 | 46472-568-000 | PACKING, OIL BOLT | 004 |
| 24 | 90651-538-000 | CLIP, BRAKE HOSE | 004 |
| 25 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
| 26 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 004 |
| 27 | 90651-538-000 | CLIP, BRAKE HOSE | 002 |
