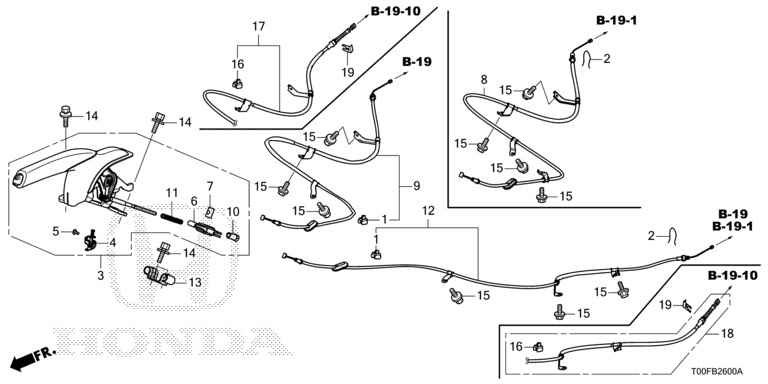

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 42514-T5A-003 | CLAMP, WIRE (BLACK) (LEFT HAND SIDE) | 001 |
| 2 | 43115-ST5-004 | CLIP, WIRE | 002 |
| 3 | 47105-T9A-T02ZA | LEVER ASSY., PARKING BRAKE (NH900L NEUTRAL BLACK) | 001 |
| 4 | 47342-T5A-J01 | SWITCH, PARKING BRAKE | 001 |
| 4 | 47342-T9C-T01 | SWITCH, PARKING BRAKE | 001 |
| 5 | 47344-TM2-T01 | SCREW, TAPPING, 4X10 | 001 |
| 5 | 47344-TR0-A01 | SCREW, TAPPING, 4X10 | 001 |
| 6 | 47360-T5A-J01 | EQUALIZER | 001 |
| 6 | 47360-TG2-T01 | EQUALIZER | 001 |
| 7 | 47365-538-000 | PIN, EQUALIZER | 001 |
| 7 | 47365-SDG-003 | PIN, PARKING BRAKE EQUALIZER | 001 |
| 7 | 47365-TM2-T01 | PIN, EQUALIZER | 001 |
| 8 | 47510-T08-D01 | WIRE B, R. PARKING BRAKE | 001 |
| 10 | 47522-594-000 | NUT, PARKING BRAKE ADJUSTING | 001 |
| 10 | 47522-SDG-003 | NUT, PARKING BRAKE ADJUSTING | 001 |
| 10 | 47522-TG1-T01 | NUT, PARKING BRAKE ADJUSTING | 001 |
| 11 | 47537-SDG-003 | SPRING, PARKING BRAKE ROD | 001 |
| 12 | 47560-T08-D01 | WIRE B, L. PARKING BRAKE | 001 |
| 13 | 47572-T5A-000 | BASE, WIRE GUIDE | 001 |
| 14 | 90104-T09-000 | BOLT, FLANGE, 8X22 (GUIDE) | 004 |
| 15 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 007 |
