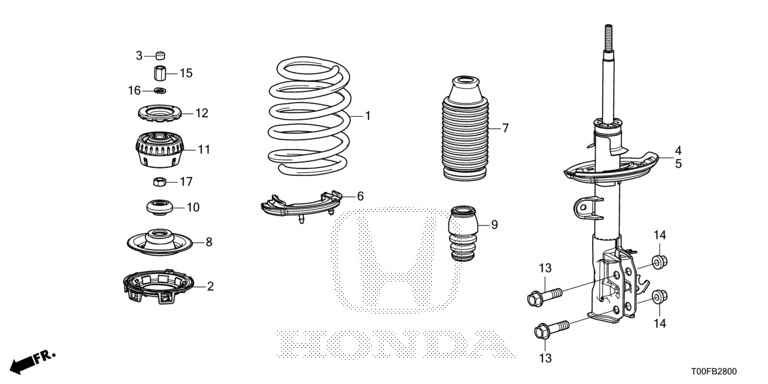

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 51401-T08-P31 | SPRING, FR. | 002 |
| 2 | 51402-TDK-J01 | SEAT, FR. SPRING UPPER CLIP | 002 |
| 3 | 51608-SLJ-000 | CAP, FR. DAMPER | 002 |
| 4 | 51611-T08-T01 | ABSORBER UNIT, R. FR. SHOCK | 001 |
| 5 | 51621-T08-T01 | ABSORBER UNIT, L. FR. SHOCK | 001 |
| 6 | 51684-T00-T01 | RUBBER, FR. SPRING MOUNT LOWER | 002 |
| 7 | 51686-TG0-T01 | SLEEVE, FR. DUST COVER | 002 |
| 8 | 51688-TM2-K01 | SEAT COMP., SPRING UPPER | 002 |
| 9 | 51722-T00-T01 | RUBBER, FR. BUMP STOPPER | 002 |
| 10 | 51726-SFA-005 | BEARING, SHOCK ABSORBER MOUNTING | 002 |
| 11 | 51920-T00-T01 | RUBBER COMP., FR. SHOCK ABSORBER MOUNTING | 002 |
| 12 | 51925-T9C-005 | DAMPER COMP., REBOUND STOP | 002 |
| 13 | 90188-SCC-000 | BOLT, FLANGE, 14X57.3 | 004 |
| 13 | 90188-SCC-A00 | BOLT, FLANGE, 14X57.3 (SERVICE) | (2) |
| 14 | 90213-SMA-003 | NUT, SELF-LOCK, 14MM (CLINCH) | 004 |
| 15 | 90215-TF0-000 | NUT, HEX., 12MM | 002 |
| 16 | 90551-SAA-000 | WASHER, WAVE, 12MM | 002 |
| 17 | 94030-12280 | NUT, HEX., 12MM | 002 |
