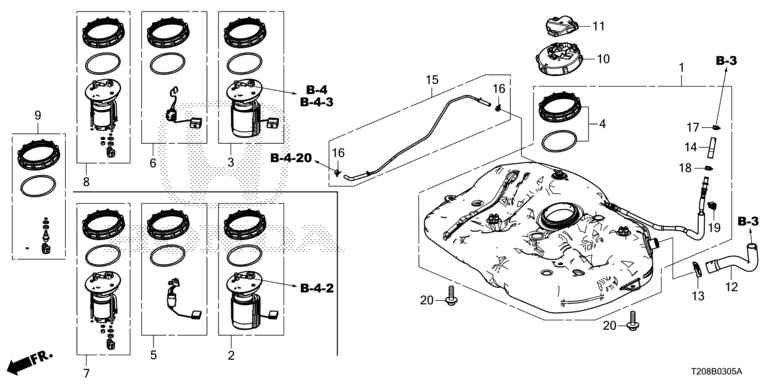

Fuel Tank
| Ref No. | Parts No. | Parts Name |
| 1 | 17044-T24-T00 | TANK SET, FUEL |
| 3 | 17045-TED-T01 | MODULE SET, FUEL PUMP |
| 4 | 17046-T0A-000 | NUT & PACKING SET, FUEL LOCK |
| 6 | 17047-TEC-T00 | METER SET |
| 8 | 17048-TEC-000 | FUELÂ STRAINER |
| 9 | 17052-TEC-000 | REGULATOR SET, PRESSURE |
| 10 | 17611-T24-T11 | COVER, FUEL PUMP MODULE |
| 11 | 17612-T24-T11 | COVER, FUEL CONNECTOR |
| 12 | 17651-T24-T01 | TUBE, FILLER NECK |
| 13 | 17652-T0A-003 | CLIP, FILLER TUBE |
| 14 | 17656-T24-T01 | TUBE, BREATHER |
| 15 | 17710-T24-000 | TUBE ASSY. A, FUEL VENT |
| 16 | 91404-TA0-G01 | CLAMP, FUEL TUBE (D10) |
| 17 | 91415-SZ3-003 | CLAMP, FUEL TUBE (D17.0) |
| 18 | 91462-SDA-003 | CLAMP, FUEL TUBE (D18) |
| 19 | 91599-TA0-L01 | CLAMP F, FUEL PIPE (BLACK) |
| 20 | 93405-08030-04 | BOLT-WASHER, 8X30 |
