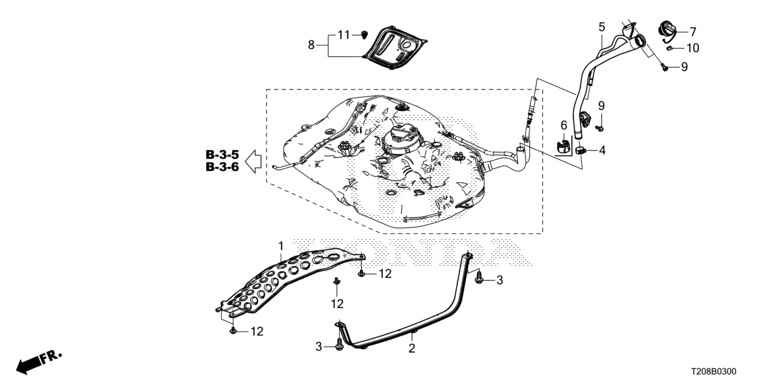

Fuel Filler Pipe
| Ref No. | Parts No. | Parts Name |
| 1 | 17518-T20-A01 | BAFFLE, FUEL TANK HEAT |
| 2 | 17521-TEA-000 | BAND, FUEL TANK MOUNTING |
| 3 | 17525-S0X-A00 | BOLT-WASHER, 10X25 |
| 4 | 17652-TR0-003 | CLIP, FILLER TUBE (28.6MM) |
| 5 | 17660-T24-T11 | PIPE, FUEL FILLER |
| 7 | 17670-T3W-003 | CAP COMP., FUEL FILLER |
| 8 | 74660-TBA-A00 | CAP FUEL MAINTENANCE HOLE |
| 9 | 90150-S04-003 | BOLT, EARTH, 6X16 |
| 10 | 91594-T7A-003 | CLIP, FILLER CAP |
| 11 | 91601-TA0-003 | CLIP, FUEL MAINTENANCE HOLE CAP |
| 12 | 93404-06012-05 | BOLT-WASHER, 6X12 |
