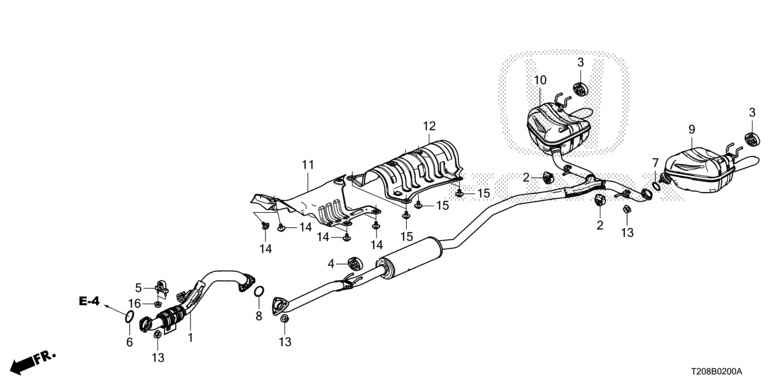

Silencer
| Ref No. | Parts No. | Parts Name |
| 1 | 18200-T24-T01 | PIPE ASSY. A, EX. |
| 2 | 18215-TA0-A01 | RUBBER, EX. MOUNTING |
| 3 | 18215-TES-H01 | RUBBER, EX. MOUNTING |
| 4 | 18215-TR0-A21 | RUBBER, EX. MOUNTING |
| 5 | 18215-TVA-A01 | RUBBER, EX. MOUNTING |
| 6 | 18302-SP0-003 | GASKET, EX. PIPE |
| 7 | 18303-SM4-020 | GASKET, SILENCER |
| 8 | 18303-T2B-A01 | GASKET, EX. PIPE |
| 9 | 18305-T24-T51 | SILENCER COMP., L. EX. |
| 10 | 18307-T24-T51 | SILENCER, EX. (RIGHT HAND SIDE) |
| 11 | 74601-T24-T00 | PLATE A, FLOOR HEAT BAFFLE |
| 12 | 74611-TEG-A00 | PLATE B, FLOOR HEAT BAFFLE |
| 13 | 90212-SA5-003 | NUT, SELF-LOCK, 10MM |
| 14 | 93404-06012-05 | BOLT-WASHER, 6X12 |
| 15 | 93404-06012-05 | BOLT-WASHER, 6X12 |
| 16 | 94050-08050 | NUT, FLANGE, 8MM |
