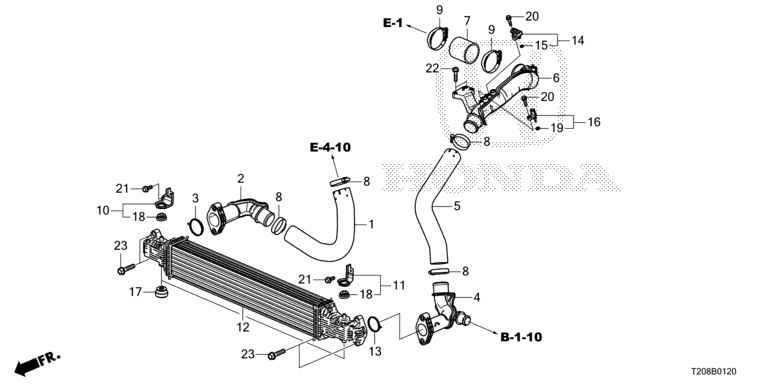

Intercooler
| Ref No. | Parts No. | Parts Name |
| 1 | 17281-64A-A01 | HOSE, INTERCOOLER IN. |
| 2 | 17282-64A-A00 | PIPE COMP., INTERCOOLER IN. |
| 3 | 17285-5AA-A01 | PACKING, TURBOCHARGER JOINT IN. |
| 4 | 17291-64A-A00 | PIPE COMP., INTERCOOLER OUTLET (A) |
| 5 | 17292-64A-A01 | HOSE, INTERCOOLER OUTLET |
| 6 | 17294-6A1-H01 | PIPE COMP. B, INTERCOOLER OUTLET |
| 7 | 17295-6A0-A01 | HOSE C, INTERCOOLER OUTLET |
| 8 | 17316-6A0-A01 | BAND, HOSE (D55.8) |
| 9 | 17317-5AN-A01 | BAND, HOSE (D70) (NORMA) |
| 10 | 19701-64A-A00 | STAY ASSY., R. INTERCOOLER |
| 11 | 19702-64A-A00 | STAY ASSY., L. INTERCOOLER |
| 12 | 19710-64A-A01 | INTERCOOLER COMP. |
| 13 | 19716-5AA-A01 | PACKING, INTERCOOLER |
| 14 | 37830-5AA-A02 | SENSOR ASSY., MAP |
| 15 | 37835-RWC-A01 | O-RING |
| 16 | 37880-RWC-A01 | AIR TEMPERATURE SENSOR |
| 17 | 74172-TBA-A00 | CUSHION, RADIATOR MOUNTING LOWER |
| 18 | 74173-SJ4-000 | CUSHION, RADIATOR MOUNTING UPPER |
| 19 | 91303-RWC-A01 | O-RING, 6.8X3.1 |
| 20 | 93403-05020-08 | BOLT-WASHER, 5X20 |
| 21 | 95701-06016-08 | BOLT, FLANGE, 6X16 |
| 22 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
| 23 | 95701-08035-08 | BOLT, FLANGE, 8X35 |
